Spine-Intra-Abdominal Pressure (SIAP) - Case Study

SHARE
Aug. 7, 2022
Courtesy ofErgotrics NV

The SIAP study investigates the effect of using Ergotrics` Inflatable Prone Support (IPS) on intra-abdominal pressure (IAP) during spine surgery.

Study background
The objective of this study is to demonstrate the ability of the inflatable Prone Supports (IPS) to lower the IAP of patients in the prone position. Whenever the patients’ position is changed to prone, the IAP is increased due to abdominal compression.1,2 It has been demonstrated previously that an increased IAP is linked to increased bleeding. The ability to reduce IAP will be assessed by measuring IAP before and after inflation of the IPS. The METC (Medical Ethics Review Committee) has approved the SIAP study submitted by Dr. Van Eijs (anesthesiologist at ETZ, Tilburg, The Netherlands). The study will enroll 40 patients, aged between 18-70 and a body weight < 120 kg.

Most popular related searches
abdominal pressure
venous blood
spinal surgery
critical patient
patient positioning
bladder pressure
abdominal cavity
venous system
blood loss
spinal canal

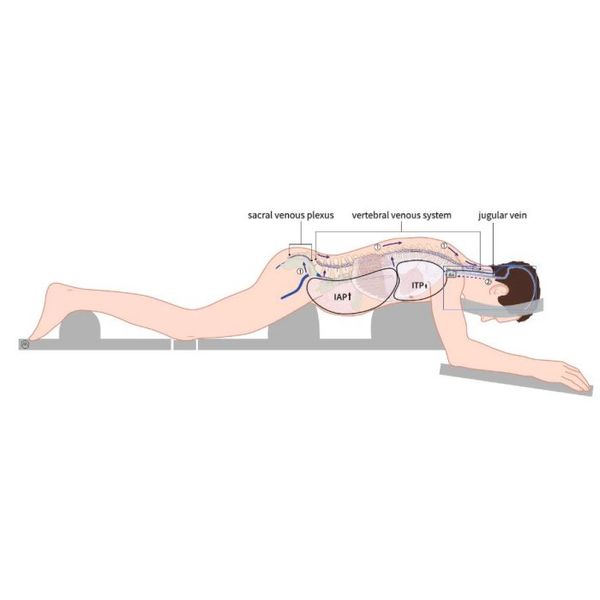

Intra-abdominal pressure (IAP) is defined as the steady-state pressure within the abdominal cavity. Under physiological conditions, values of up to 5 mmHg are considered normal in adults.3 The incidence of complications arising from increased IAP in critically ill patients, is high and its impact is significant. IAP impacts the cerebrospinal venous system and the jugular venous system via two pathways (see fig. 1).

The enrolled patients undergo spine surgery in prone position and have a transurethral bladder catheter during the procedure. The urinary catheter will be used to measure the IAP. The urinary bladder pressures reflects well the pressures in the abdominal cavity.3,7,8

How do the IPS supports for prone surgery reduce the IAP?

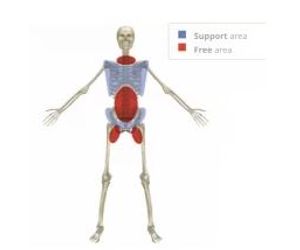

The IPS cushion is designed as a mirror image of the human skeleton. In this way it supports the ribcage and pelvis, while leaving the abdomen free. Patients are positioned in a manner to offload the abdomen as much as possible to avoid an increased IAP.

Ergotrics is a Med-Tech company which specializes in the use of compressed air in healthcare. We develop and manufacture products which allow for optimal positioning or moving of patients. Without heavy physical labour and with special attention given to ease of use, patient safety and hygiene.

  1. Malhotra et al; Quantifying the Amount of Bleeding and Associated Changes in Intra- Abdominal Pressure and Mean Airway Pressure in Patients Undergoing Lumbar Fixation Surgeries: A Comparison of Three Positioning Systems; Asian Spine J 2016;10(2):199-204.
  2. Han et al; The Effect of Body Mass Index on Intra-Abdominal Pressure and Blood Loss in Lumbar Spine Surgery; J Korean Neurosurg Soc 51 : 81-85, 2012.
  3. Kirkpatrick et al; Intra-abdominal hypertension and the abdominal compartment syndrome: updated consensus definitions and clinical practice guidelines from the World Society of the Abdominal Compartment Syndrome; Intensive Care Med (2013) 39:1190–1206.
  4. Depauw et al; The significance of intra-abdominal pressure in neurosurgery and neurological diseases: a narrative review and a conceptual proposal; Acta Neurochir (Wien). 2019 May;161(5):855-864.
  5. Park; The Effect of Patient Positioning on Intraabdominal Pressure and Blood Loss in Spinal Surgery; Anesth Analg. 2000 Sep;91(3):552-7.
  6. Koprulu et al: Ventilation Mode and Epidural Bleeding in Microdiscectomy: Comparison of Two Ventilation Techniques; Turk Neurosurg 26(5): 777-782, 2016.
  7. Al-Abassi et al; Is intra-bladder pressure measurement a reliable indicator for raised intra-abdominal pressure? A prospective comparative study. BMC Anesthesiol. 2018 Jun 19;18(1):69.
  8. Bodnar. Continuous Intra-Abdominal Pressure Measurement: Re-Discovered. Biomed J Sci&Tech Res 9(3)-2018.
