Allied Motion, Inc. products

Allied Motion offers several brushless motor drives to power our motors. The cost-effective single-axis SXD brushless motor drive is respectively, DC-fed and AC-fed full-featured servo drives. Both are compact, modular units able to precisely control motor torque or velocity. The SXD is rated up to 1000 W continuous and the xDrive can provide up to 4.4 kW continuous. Our patented DPFlex™ II brushless motor drive is the best choice for robust speed control of sensorless motors. The DPFlex II reliably starts sensoreless motors under load, and can drive suitable models to speeds as high as 150,000 RPM.

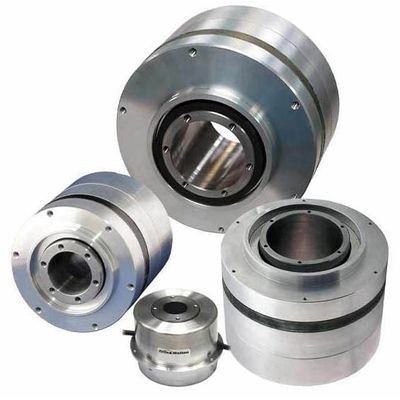

Allied Motion offers housed direct drive brushless torque motors ready to mount into your application. These high performance motors are available in four series with outer diameters up to 170 mm (6.7 in). The CM series are available with eight different optical encoder versions, including absolute formats. Our housed Megaflux series are fully integrated units that include a servo drive and an optical encoder. Summary technical details for Allied’s housed direct drive torque motors are provided in the table below.  Allied Motion engineers can custom-design a version to meet your specific application requirements.

Allied Motion is a technology leader in Frameless Brushless Direct Drive Torque Motors. Allied has developed and manufactures several types of frameless direct drive brushless motors, including a broad range of standard catalog models. Allied is also well-known for the special and completely custom torque motors we have developed. Key characteristics of each family of frameless brushless direct drive torque motors are summarized in the table below. Click the "Details" button to find technical files, including model specs, datasheets, CAD drawings, and installation manuals for each of our brushless direct drive torque motors.
