AMS, Inc. products

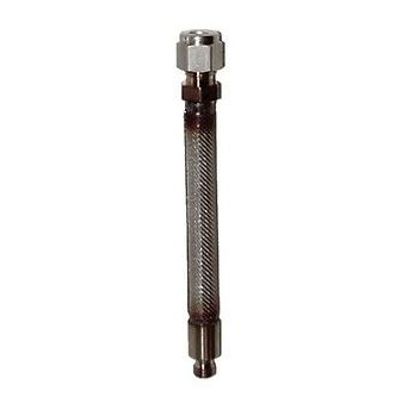

Stainless steel (SST) mesh implants are constructed of a double woven SST wire screen. With the stepped fitting, the implant will accept tubing sizes of 1/4" OD through 1/2" OD. The solid threaded end allows for either an anchor point anchor weight or open-hole placement.

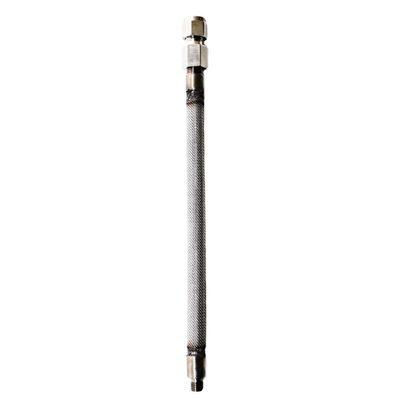

Stainless steel (SST) mesh implants are constructed of a double woven SST wire screen. With the stepped fitting, the implant will accept tubing sizes of 1/4" OD through 1/2" OD. The solid threaded end allows for either an anchor point anchor weight or open-hole placement.

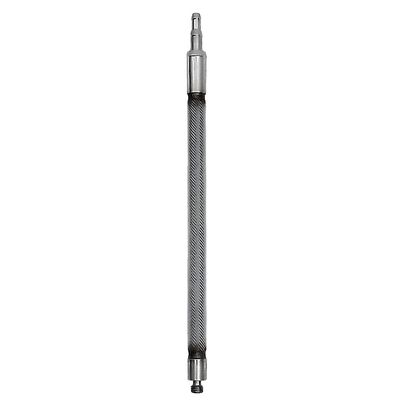

Stainless steel (SST) mesh implants are constructed of a double woven SST wire screen. With the SST swagelok fitting, the implant will accept tubing sizes of 1/4" OD. The solid threaded end allows for either an anchor point anchor weight or open-hole placement.

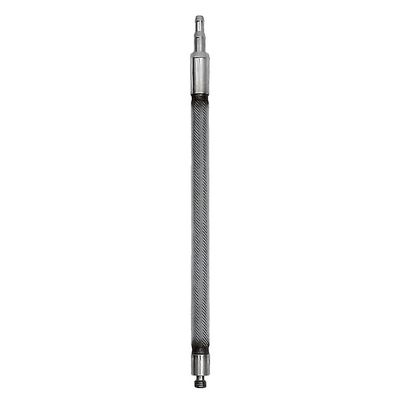

3" Stainless Steel Implant, 1/4" SS Compression.

3" Stainless Steel Implant, 1/4" SS Compression.

AMS 6-inches (152mm) Gas Vapor Implant Installation Kit are used for permanent soil gas monitoring, UST monitoring, groundwater sampling, air sparging, vapor extraction monitoring, and as a pressure measurement point in vacuum testing. This kit allows a user to obtain or collect a soil gas sample by positioning or placing a 6” implant in the subsurface, and subsequently withdrawal a sample of soil atmosphere through the implant from the target sampling horizon.

AMS Vapor Implants have double woven stainless steel wire screens with a .0057-in. (0.15mm Pore).
