Behringer srl products

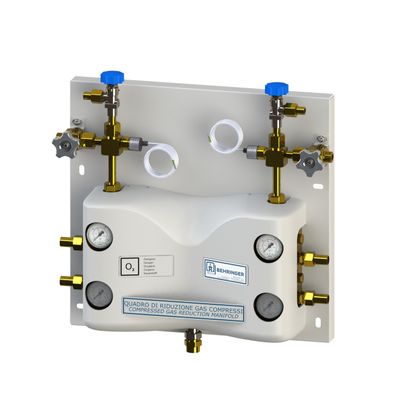

Panel III compressed gas source for medical gases, suitable for installation downstream of the reserve source; equipped with pressure switch and ramp purge valve; composed of a double-head reduction line, it guarantees a continuity of supply with high pressure stability; It is completed by a powder-coated steel plate and a white polycarbonate lid that is light and practical to install.

High flow rate control panel for oxygen, with automatic change-over and available both with reset and automatic; calibrated at 9 bar at the outlet, it reaches a maximum flow rate of 135 mc / h in oxygen in the manual reset version, 110 mc / h in the fully automatic version; it is available with pressure switch or transducer; consisting of two double reduction lines, it guarantees continuous supply with high pressure stability; complete with manifolf exaust valve; the outlet connector is for a Ø 22 mm welded pipe; the panel is completed by a steel plate and a white polycarbonate cover that is light and practical to install.

1st stage compressed gas manifols, medium / high flow rate for medical gases, available both with automatic change - over and manual reset and fully automatic; both versions are available with pressure switch or transducer; consisting of two double-head reduction lines, it guarantees continuity of supply with high stability at the operating pressure of 5 bar; complete with ramp purge valves; very compact, it is completed by a powder-coated steel plate and a white polycarbonate lid that is light and practical to install.

 Medium/high flow rate control panel for medicinal gases, available both with automatic change-over and manual reset and fully automatic; both versions are available with pressure switch; consisting of two double reduction lines, it guarantees continuous supply with high pressure stability; complete with manifolf exaust valve; the outlet connector is for a Ø 22 mm welded pipe; its maximum flow rate with nitrogen at 9 bar outlet pressure is 90 Nm³/h, 1500Nl/min; the panel is completed by a steel plate and a white polycarbonate cover that is light and practical to install.

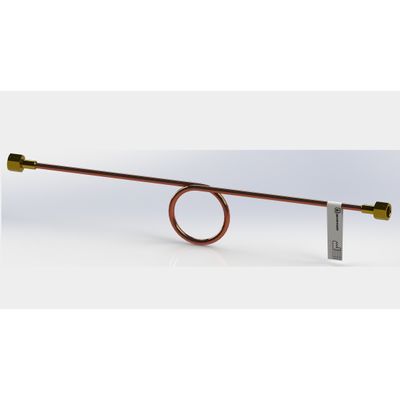

Copper connection fitting for connecting two high pressure ramps or at the inlet of the decompression panel. The swivel nuts are gas specific threads in accordance with the standards.
