Bioengineering Laboratories S.r.l. products

Temporary set double-lumen 11,5Fr catheter Set codes: HD9120104- HD9120105 - HD9120106.

Device designedand realized for an easy. safe, reliable and successful execution of the uterine paracervical block. It consists of: A handle at the proximal end of which a slide mechanism is placed to permit a safe and precise release of the needle tip outside a protective sheath; a red marker indicates the right and definitive release of the needle bp (this marker 6 hidden by the slide mechanism when at rest). The needle bp will return inside the protective sheath pushing the button placed just at the opposite side of the slide mechanism.

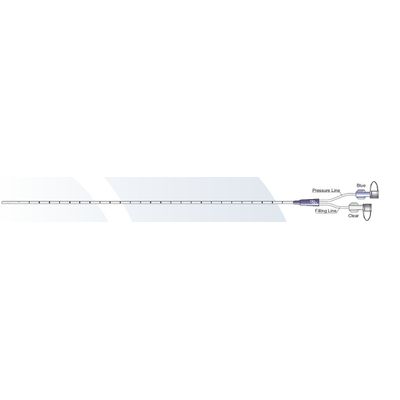

PVC, coaxial double lumen catheter The lumen indicated in figure with "Filling line "opens near the tip with one large sideport "D". The lumen indicated in figure with "Pressure line" opens withfourcircular.radialholes``P",at60mmfrom the hole “D". Centimeter graduations from the proximal hote"P".

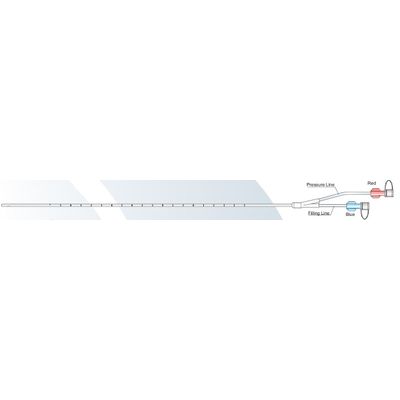

Straigth and Tiemann tip catheters. The lumen indicated in figure with "Filling line" opens near the tip with one large sideporfD" (distal). The lumen indicated in figure with "Pressure line" opens with one circular hole "P" (proximal) at 10 mm from the distal sideport. Centimeter graduations from the proximal hole "P". Pigtail tip catheter The lumen indicated in figure with "Filling line" opens near the tip with one large sideport "D" (distal). The lumen indicated in figure with "Pressure line" opens with three radial, circular holes "P" (proximal). The catheter is provided with a special stylet, with tapered end. for an easy, atraumatic insertion. Centimeter graduations from the base of the Pigtail end. Centimeter graduations from the proximal hole.

PVC triple lumen catheters Meter for cystometry and urethral pressures profile. The lumen indicated in figure with "Filling line" opens near the tip with a side port ~D". The lumen indicated in figure with "Pura line" opens with a round hole “MM” inside the track between the rings *R" at 50 mm from the hole "D". The lumen indicated in figure with "UPP perfusion line" opens too inside the track between the rings "R", with a round hole *P" at 50 mm from the hole “DM”. Centimeter graduations from the holes "M" and "P".
