2 products found

Correlated Solutions products

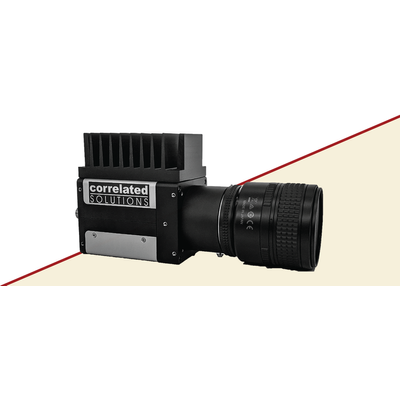

Correlated Solutions - Digital Image Correlation System

The VIC-2D system by Correlated Solutions is a comprehensive digital image correlation solution that supports mechanical testing by providing detailed two-dimensional displacement and strain data for planar specimens. It operates using optimized correlation algorithms, measuring in-plane displacements across entire areas of interest and calculating the full-field strain to highlight strain concentrations. This system is notable for its ability to measure specimen sizes from microscopic to large scale due to adjustable optics, and it works well with high-powered microscopes such as ATMs or SEMs. The incorporation of the iris graphics engine into the VIC-2D system enhances data visualization capabilities significantly, allowing users to create high-quality presentations, perform theoretical data comparisons, and manage DIC data without third-party software. Additional features include precise motion resolution, synchronized data acquisition, and extensive exports and editing functionalities.

Correlated Solutions - Educational System for Digital Image Correlation

The VIC-EDU system is tailored for academic institutions aiming to elevate the teaching of digital image correlation (DIC) techniques to both undergraduate and graduate students. By utilizing the same robust DIC algorithms found in VIC-3D software, VIC-EDU enables efficient data acquisition with its streamlined setup and refined post-processing capabilities. Housed within a protective enclosure, the system's stereo cameras are complemented by an integrated LED light, cooling fan, and external USB and power connections. Its comprehensive package includes a tripod, speckle roller, calibration target, and carrying case, making it an excellent fit for engineering disciplines such as solid mechanics and aerospace. The accompanying software offers image processing capabilities, facilitating easy sharing of lab images with students and enhancing curriculum quality. This system supports a single USB3 connection and power source, ensuring compatibility with typical computing environments.
