Excillum products

Metal-Jet

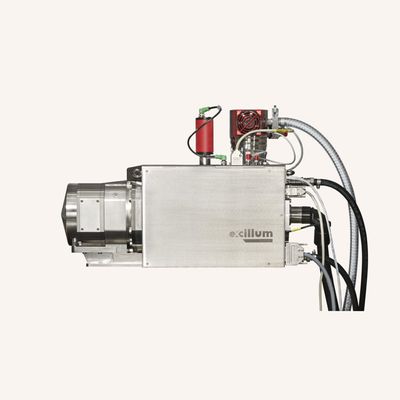

Excillum - Home-Lab X-Ray Source

The world's brightest home-lab X-ray source. The Excillum MetalJet D2+ features our unique metal-jet anode technology and advanced electron optics. Achieving significantly higher brightness and smaller spot sizes than any other available microfocus X-ray source, the MetalJet can create very brilliant and small beams enabling the closest possible performance to synchrotron capabilities in the home lab. Within the 5-30 μm spot-size range, the Excillum MetalJet D2+ delivers significantly higher brightness than any other available microfocus X-ray source on the market, and with an excellent spot quality. This makes it an ideal source for any microfocus application requiring shorter exposure times, higher throughput or better signal to noise. With the introduction of Dynamic Adaptation technology the practical cathode lifetime has been further extended 2-4x, up to a full year of 24/7 operation depending on application.

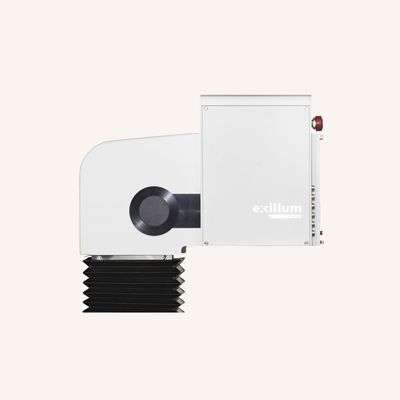

NanoTube N3 X-ray Sources

Excillum - Nanoscale Resolution Revolution

The Excillum NanoTube N3 enables industry-leading resolution and stability in geometric-magnification X-ray imaging systems with no need for manual tuning. The Excillum NanoTube N3 is based on advanced electron optics and the latest tungsten-diamond transmission target technology. Automatic e-beam focusing and astigmatism correction ensures that the smallest possible, truly round spot is achieved every time, every day. The NanoTube N3 also has the unique feature of internally measuring and reporting the current spot size. In addition, advanced cooling and thermal design results in extreme stability over long exposures. This enables an unprecedented true resolution of 150 nm lines and spaces.

Excillum - Nanoscale Resolution Revolution

The highest imaging resolution across the full voltage range. The Excillum NanoTube N3 enables industry-leading resolution and stability in geometric-magnification X-ray imaging systems with no need for manual tuning. The Excillum NanoTube N3 is based on advanced electron optics and the latest tungsten-diamond transmission target technology. Automatic e-beam focusing and astigmatism correction ensures that the smallest possible, truly round spot is achieved every time, every day. The NanoTube N3 also has the unique feature of internally measuring and reporting the current spot size. In addition, advanced cooling and thermal design results in extreme stability over long exposures. This enables an unprecedented true resolution of 150 nm lines and spaces.
