Medartis AG products

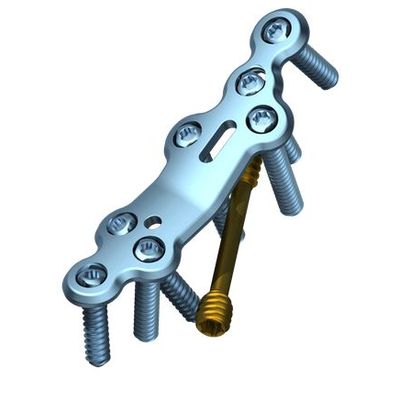

1.6 mm thick plates with offset screw geometry in the shaft. Oblong hole for 2.8 mm cortical screws. Standard plate – three screw placements in the distal section of the plate. K-wire hole distally and proximally for temporary fixation with K-wires.

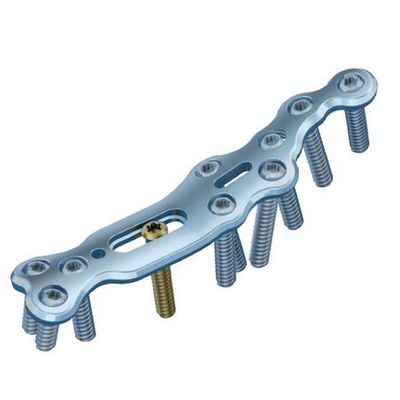

K-wire slot for compression with K-wires. Oblong hole for variable autograft fixation. TriLockPLUS – Compression and angular stable locking. Closely arranged distal holes. K-wire hole for temporary fixation.

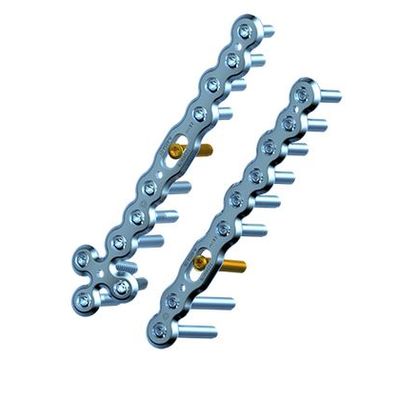

Three defined dorsiflexion angles. 10° valgus angle. TriLockPLUS – Compression and angular stable locking. K-wire hole for temporary fixation. K-wire slot for compression with K-wires.

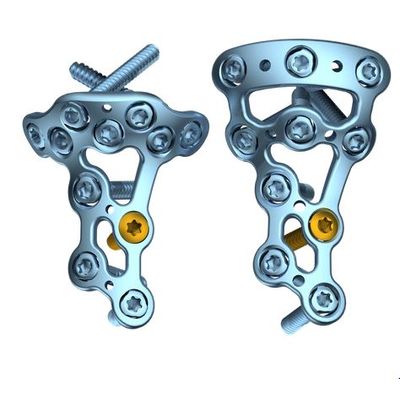

Plate sizing designed to address the «safe zone». Two proximal rows of screws for better support of the head. Two plate bars in the shaft region for increased stability. Holes in the shaft region are offset to prevent screw collisions. Screw holes for 2.0 mm TriLock locking or cortical screws. Plate thickness 1.4 mm. 1.2 mm K-wire holes.

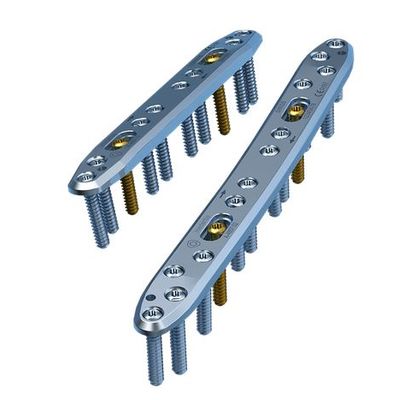

TriLock^PLUS screw holes offer the advantage of locking and compression in one step. Oblong holes for minor plate adjustments. TriLock – multidirectional angular stability of ± 15° in all directions and in each screw hole*. K-wire holes to assist with temporary plate fixation. Low plate profile, rounded edges and a smooth surface for soft tissue protection. Exception: oblong holes.
