Medlab medizinische Diagnosegerate GmbH products

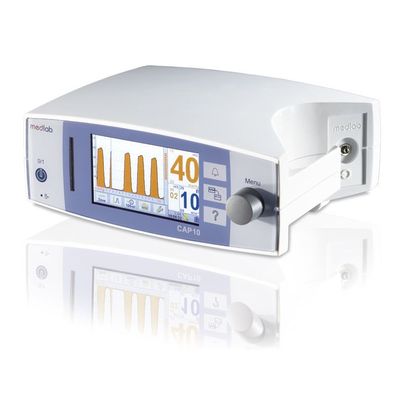

The new CAP10 Capnograph with sidestream technology fulfills all requirements you have in clinical and pre-clinical applications for monitoring a patient’s breath and CO2 status. The bright, high resolution coloured TFT display shows the etCO2 value, the inCO2 value, the respiration rate and the capnogram. The sample rate is adjustable between 60 and 150 ml/min, to allow usage on adults as well as on neonates. The CO2 values are shown in mmHg, %Vol or kPa. By using the built-in, rechargeable battery it is possible to work up to five hours without mains connection.

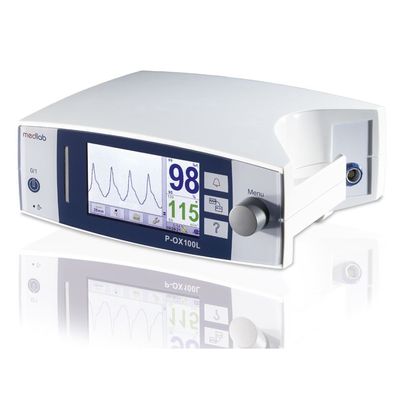

The P-OX100L with its crystal clear colour screen fulfills all needs you have when looking for a modern monitoring system. This cost-effective, versatile pulse oximeter delivers fast, reliable SpO2, Pulse Rate, and Pulse Strength measurements, complete with a plethysmographic waveform and a trend display. The newly designed user interface with a bright and easily viewable screen makes the P-OX100L one of the most versatile instruments available today. The device employs a full, three staged alarm system with audible and visible alarms. Its built-in battery lasts for nearly six hours and makes the P-OX100L the perfect choice for inhouse and portable applications. Flip feet on front and back allow you to adjust the viewing angle of the display for improved readability in any situation.

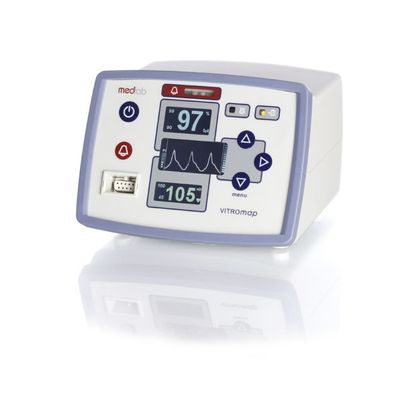

The VITROmap is a budget-priced pulse oximeter that works up to 12 hours on the integrated, rechargeable battery or directly on a mains connection. This cost-effective, versatile pulse oximeter delivers fast, reliable SpO2, Pulse Rate and Pulse Strength measurements, complete with a pulse bar graph display. The values are displayed in blue (SpO2) and green (pulse) colour. The alarm system for saturation and pulse rate makes it easy to monitor a patient. The alarm volume is high enough to be heard in a larger distance to the instrument. The volume of the saturation dependent pulse tone is adjustable. Furthermore, the unit features a memory of 50 hours for up to 5 patients.

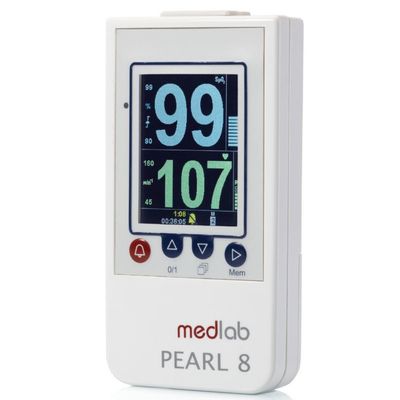

The PEARL8 Pulse Oximeter with its new digital signal processing technology works reliably and can be used from neonate to adult. It features a bright, crisp TFT display which is easily readable. With its integrated alarms the device allows for monitoring a patient. The standard display can be set to three different modes: large numerical, numerical-waveform and numerical-trend.

The PEARL5 Pulse Oximeter with its new digital signal processing technology works reliably and can be used from neonate to adult. It features a bright, crisp TFT display which is easily readable. The standard display can be set to three different modes: large numerical, numerical-waveform and numerical-trend.
