Stent Systems

The EFIL+ Sirolimus Eluting Stent System is a combination product comprised of two regulated components: a device (a coronary stent system) and a drug product (a formulation of Sirolimus contained in a polymer coating) pre mounted on balloon catheter between two platinum iridium radio opaque marker bands. EFIL+ uses a validated formulation of low dose Sirolimus (1.30µg/mm ) timed to elute in ?30 days to 45 days from a biodegradable & biocompatible polymer base (PLLA & PLGA) which degrades simultaneously. The stent platform is made of Cobalt Chromium Alloy L605, which contains no Molybdenum and only 10% of Nickel. After mounting stent onto a balloon catheter, it is deployed in the coronary artery by inflating the balloon. It is intended as a permanently implanted, non-reusable device.

Heart Valve Systems

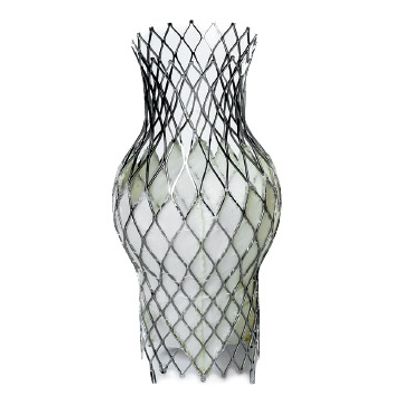

Tricvalve - Inferior Vena Cava Valve

Available Sizes: 31 mm and 35 mm valves. Treatment Range IVC 31: inferior vena cava from 24 mm to 31 mm. Treatment Range IVC 35: inferior vena cava from 28 mm to 35 mm. Frame Height (at relaxed state) IVC 31: 65 mm. Frame Height (at relaxed state) IVC 35: 65 mm. Leaflet Material: Bovine pericardium. Skirt Material: Bovine pericardium + PET - short skirt to prevent hepatic vein occlusion. Frame Material: Nitinol.

Tricvalve - Superior Vena Cava Valve

Available Sizes: 25 mm and 29 mm Valves. Treatment Range SVC 25: superior vena cava from 22 mm to 31 mm. Treatment Range SVC 29: superior vena cava from 27 mm to 34 mm. Frame Height (at relaxed state) SVC 25: 67 mm. Frame Height (at relaxed state) SVC 29: 69 mm. Leaflet Material: Bovine pericardium. Skirt Material: Bovine pericardium - long skirt to prevent para valvular leak (PVL). Frame Material: Nitinol.

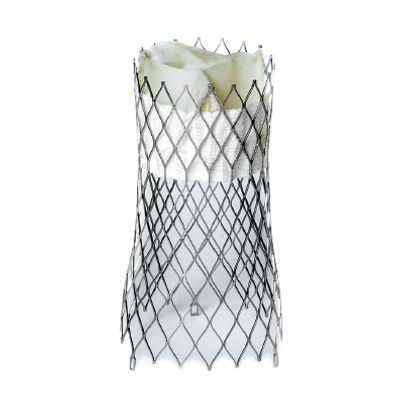

Self-Expandable Transcatheter Valve

The Vienna Aortic Self-Expandable Transcatheter Valve is designed to treat severe aortic stenosis in patients at medium to high risk for open heart surgery. The minimally invasive heart valve replaces the native valve without the need for concomitant surgical removal and is placed throught femoral access. The new generation device comes fully premounted with specially prepared bovine pericardium, thus reducing preparation steps and procedure time.

PTCA Catheters

Post Dilatation Angiographic Diagnostic Catheter

Kathy NC, a Post Dilatation Angiographic Diagnostic Catheter, is used to open narrowed arteries. A balloon, which sits at the tip of a flexible catheter, is inflated at high pressure, inside the narrowed artery wall. This pushes the arterial plaque against the blood vessel and decisively improves blood flow to the heart muscle.
