Sedana Medical AB products

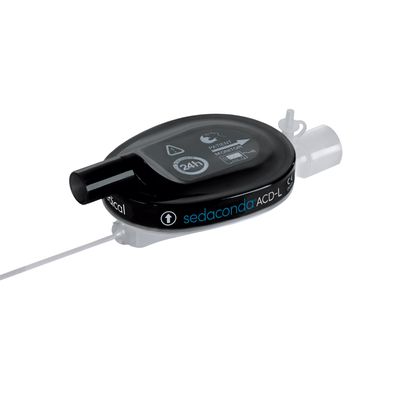

Sedaconda ACD-L is a medical device which enables the administration of volatile anaesthetics (isoflurane or sevoflurane) and is inserted between the Y-piece and ET-tube. The device has no electrical components and is MRI & CT scan compatible. It also acts as an efficient Heat and Moisture Exchanger (HME) and contains an electrostatic bacterial/viral filter. The Sedaconda ACD-L has a dead space of 100 ml and can function with tidal volumes as low as 350 ml.

Sedaconda ACD-S is a medical device which enables the administration of volatile anaesthetics (isoflurane or sevoflurane) and is inserted between the Y-piece and ET-tube. The device has no electrical components and is MRI & CT scan compatible. It also acts as an efficient Heat and Moisture Exchanger (HME) and contains an electrostatic bacterial/viral filter. The Sedacnda ACD-S has a dead space of 50 ml and can function with tidal volumes as low as 200 ml.

The Sedaconda Syringe is a 50/60ml syringe with a unique connection to fit the connector on the agent line of the Sedaconda ACD and Sedana Medical filling adapters. It should only be used with CE marked syringe pumps which are programmable with settings for Sherwood Monoject or Becton Dickinson Plastipak 50ml (50/60ml) syringes. Syringes can be pre-filled and stored for up to 5 days in a dark environment at room temperature. Always ensure the syringe is safely closed when not in use.

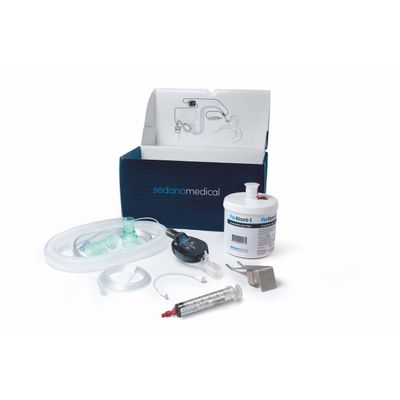

The Sedaconda ACD starter kit contains one Sedaconda ACD-S, and all the ancillary accessories required to set up and start using the device. A simplified picture of the Sedaconda ACD set-up is printed inside the box, to guide the user.

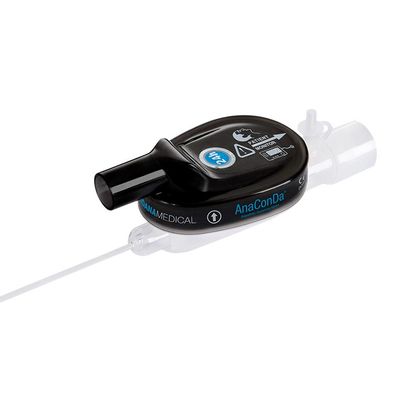

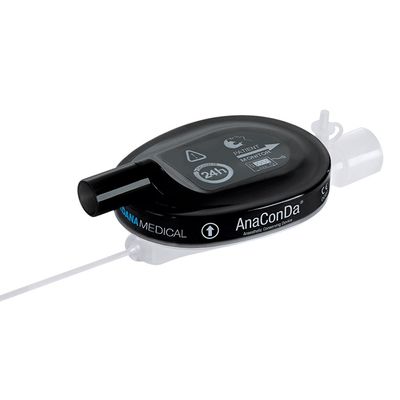

AnaConDa-S is a medical device which enables the administration of volatile anaesthetics (isoflurane or sevoflurane) and is inserted between the Y-piece and ET-tube. The device has no electrical components and is MRI & CT scan compatible. It also acts as an efficient Heat and Moisture Exchanger (HME) and contains an electrostatic bacterial/viral filter. The AnaConDa-S has a dead space of 50 ml and can function with tidal volumes as low as 200 ml.

The AnaConDa Syringe is a 50/60ml syringe with a unique coupling to fit the connector on the agent line of the AnaConDa. It should only be used with CE marked syringe pumps which are programmable with settings for Sherwood Monoject or Becton Dickinson Plastipak 50ml (50/60ml) syringes. Syringes can be pre-filled and stored for up to 5 days in a dark environment at room temperature. Always ensure the syringe is safely closed when not in use.

Sedaconda is indicated for sedation of mechanically ventilated adult patients during intensive care.
