Wearable Sensing products

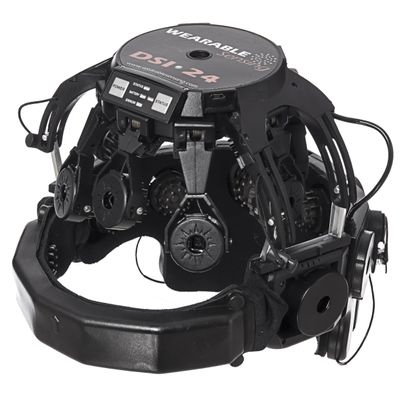

The DSI-24 is a research-grade wireless dry electrode EEG headset designed for rapid application of 21 sensors at locations corresponding to the 10-20 International System. Its main features include: Self-donned and ready to record EEG in under 5 minutes, Comfortable for wearing continuously over 8 hours, Portable design suitable for light ambulation in office or lab environment, 21 sensors positioned according to the 10-20 International System, Continuous impedance monitoring, Bluetooth wireless transmission with sampling at 300 Hz, Hot-swappable Li-ion batteries allow continuous operation, 8-bit digital trigger input, Adjustable to fit a wide range of head sizes (52-62 cm in circumference)

The wireless trigger hub enables interfacing between Wearable Sensing’s Dry Sensor Interface (DSI) EEG headsets and other systems, facilitating device synchronization and third-party system integration. The hub allows you to acquire triggers from and transmit triggers to many sources. consolidating up to 8 trigger sources into a single multi-channel output that inputs directly into DSI systems. The use of standardized input connectors and cables allows the user to connect and synchronize a wide range of third-party devices with the hub and with DSI systems. Triggers from the input parallel port are distributed across the connections on the output panel. The trigger output voltage is 0 – 5 V, which is sufficient to drive the trigger inputs of standard devices.

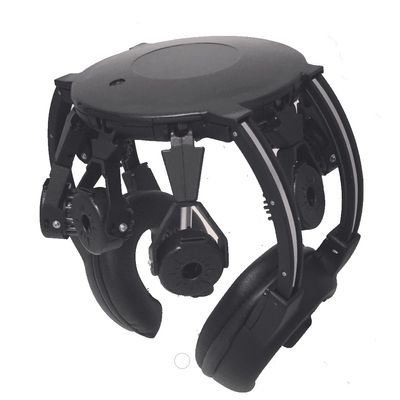

The DSI-7 is a research-grade wireless dry electrode EEG headset designed for ultra-rapid application of 7 sensors at locations corresponding to the 10-20 International System. Its main features include: Self-donned and ready to record EEG in under 1 minutes, Comfortable for wearing continuously over 8 hours, Portable design suitable for light ambulation in office or lab environment, 7 sensors positioned at the F3, F4, C3, C4, Pz, P3, P4 locations of the 10-20 International System, Linked-Ears earclip mounted active sensors, Continuous impedance monitoring, Bluetooth wireless transmission with sampling at 300 Hz, Rechargeable Li-ion batteries allow continuous operation, 4-bit digital trigger input, Adjustable to fit a wide range of head sizes, Customizable sensor locations (contact us for custom requests), * The DSI-7 replaces the DSI-6 prototype system (most information about DSI-6 and tutorial videos are applicable to DSI-7)
