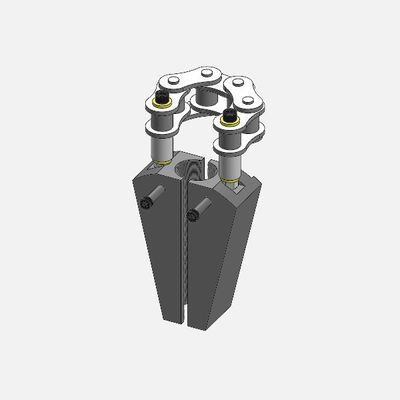

Model TTA-GA-114M - 1-1/4 Inch Monolithic Gripper Assembly

The 1-1/4” Monolithic Gripper Assembly is used to hold the 1-1/4” compact swaged cable during the extension and retraction strokes of the M100 ram. The grooves of the Grippers engage the cable, and the Chain Yoke assembly keeps the Grippers (TT-GRPR-114M) side by side as they move up or down in the gripper pocket. A Long Shoulder Screw (TT-FSNR-BA1000H) is screwed into the front face of the Grippers as a lower anchor point for the Tension O-ring (TT-SEAL-TOL).
