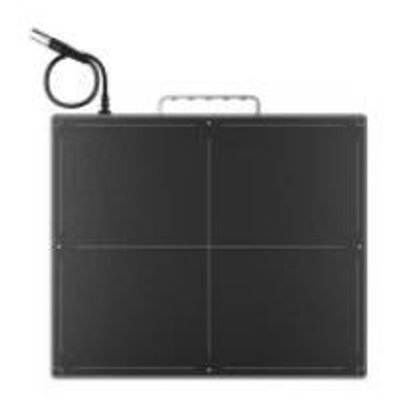

Examvue -Model DRC -14x17" Tethered Cassette-Sized Detector

The 14” x 17″ExamvueDRC tethered cassette-sized detector easily fits into standard bucky tray cabinets for upgrading a film or CR system to a flat panel DR system. Lightweight, slim design with an award winning built-in foldable handle, rubber insulated frame and high strength aluminum-alloy case ensure safe and convenient operation and moves. F2AED® eliminates wiring to the generator.

• Scintillator: CsI Direct Deposit
• Active Area: 14″x17″ (434mmx355mm)
• Pixel Array: 2816 x 2304
• Pixel Pitch: 154um
• Resolution: 3.3lp/mm
• Greyscale: 16bits
• Data Output: Gigabit Ethernet
• Image Acquisition Time: Pre Processing 2-3 seconds
• Exposure Control: AED or Manual
• Power Supply: AC 100-240V, 50/60Hz
• Environment: Storage: -20 ~ 55°C
• Operation: 5~35°C
• Dimensions(W x L x H): 18 x15 x 0.6″(460 x 384 x 15mm) Cassette Sized Standard for Wall or Table
• Weight: 7.2 lbs
• Housing Material: Aluminum alloy back
