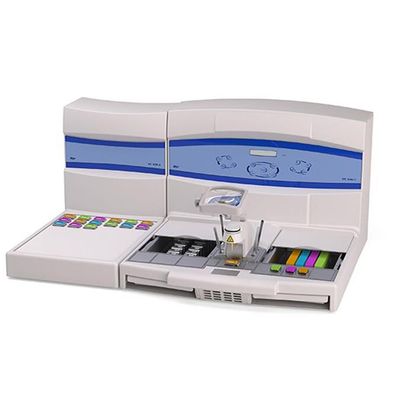

CellPath -Model JAM-EC-350 -2 Modular Tissue Embedding Console
FromCellPath Ltd
The Modular Tissue Embedding Centre EC 350 is innovatively designed and easy to operate. Multiple configurations of the instrument set-up allow simple and flexible adaptation to your working method within the laboratory.
Most popular related searches
Dispensing Console Key Benefits:
- Incorporates two large independently heated trays either side of the wax dispenser for storing cassettes and moulds
- Operating panel allows for the easy programming of working times and temperatures
- A spacious heated working area incorporates a non-glare white LED illumination and adjustable magnifying glass
- Paraffin flow from the dispenser can be released manually as well as by a footswitch, with the flow rate set continuously if required
- Integrated cooling spot situated close to the paraffin nozzle offers a lean workflow with short movements
- Six independently heated forceps wells
- Automatic timer saves energy by turning on and off via a calculation of individual pre-heating times
- The heated work surface is sloped towards the operator and ergonomically shaped to improve user comfort
- 5-litre paraffin reservoir capacity
Cryo Console Key Benefits:
- Interchangeable to either the left or right-hand side of the dispensing console.
- The large cooling-surface holds approximately 60 cassettes/moulds.
- The temperature can be set down to -12°C and offers an even temperature distribution over the entire surface.
- Console dimensions: 650mm x 595mm x 430mm (D x W x H)
- Removable tray dimensions: 175mm x 262mm x 55mm (D x W x H)
- Weight: 27.8kg
- Console dimensions: 620mm x 340mm x 405mm (D x W x H)
- Cold plate dimensions: 307mm x 375mm (D x W)
- Weight: 24.4kg
