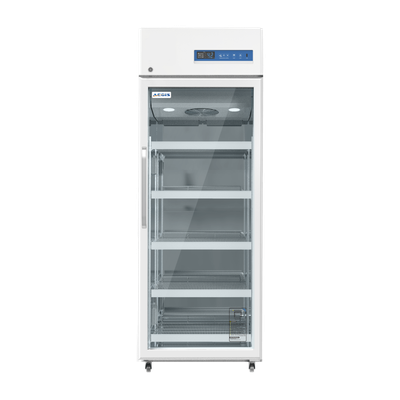

AEGIS - Model GL-RG-25M Glacier Series - 25 Cuft Medical Refrigerator
The GL-RG-25M Glacier Series Medical Refrigerator is an upright, high-capacity refrigeration unit designed to meet the stringent requirements of medical facilities. The refrigerator has a volume of 650 liters (22.95 cubic feet) and is equipped with air cooling and automatic defrost features, using the eco-friendly refrigerant R290. It maintains an internal temperature range of 2 to 8℃ despite ambient temperatures ranging from 16 to 32℃, making it suitable for clinical, hospital, and research environments. The exterior is constructed of spray cold rolled steel, while the interior is fashioned from stainless steel. The unit offers six coated steel wire shelves, an LED-lit chamber, and a secure lockable door with a heating feature. It includes a digital microprocessor controller and a USB data logging feature, recording every 10 minutes for up to two years. Alarms for temperature fluctuations, power failures, and system errors ensure reliable performance. The refrigerator operates on multiple power supplies and consumes 3.81 kWh/24h.
- High efficiency refrigeration system for optimal performance
- Forced-air cooling with internal fan for maximum temperature uniformity and stability
- Cooling fan is permanently lubricated for long life
- Automatic defrost maintains optimum cooling capacity
- Multiple alarm system for safe and reliable operation
- Glass door with electric heat reduces condensation
GENERAL SPECIFICATIONS
- Cabinet Type : Upright
- Capacity(L) : 650L / 22.95 cu ft
- Internal Size(W*D*H) : 610*685*1264mm 24*26.96*49.76in
- External Size(W*D*H) : 715*910*1985mm 28.34*35.82*78.14in
- NW(Kgs) : 179
PERFORMANCE
- Temperature Range : 2~8℃
- Ambient Temperature : 16-32℃
- Cooling Performance : 5℃
- Climate Class : N
- Controller : Microprocessor
- Display : Digital display
REFRIGERATION
- Compressor : 1pc
- Cooling Method : Air cooling
- Defrost Mode : Automatic
- Refrigerant : R290
CONSTRUCTION
- External Material : Spray cold rolled steel plate
- Inner Material : Stainless steel (Aluminum plate with spraying optional )
- Shelves : 6(coated steel wired shelf)
- Door Lock with Key : Yes
- Lighting : LED
- Access Port : 1pc. Ø 25 mm
- Casters : 4(2 caster with brake）
- Data Logging/Interval/RT : USB/Record every 10 minute / 2 years
- Door with heater : yes
- Standard Accessory : RS485，Remote alarm contact，Backup battery
ALARM
- Temperature : High/Low temperature,High ambient temperature,Condenser high temperature
- Electrical : Power failure, Low battery
- System : Sensor error,Door ajar，Built-in datalogger USB Failure, Remote alarm
ELECTRICAL
- Power Supply(V/HZ) : 220/50, 220/60, 110/60
- Rated Power(W) : 415
- Power Consumption(KWh/24h) : 3.81
- Rated Current(A) : 2.49
