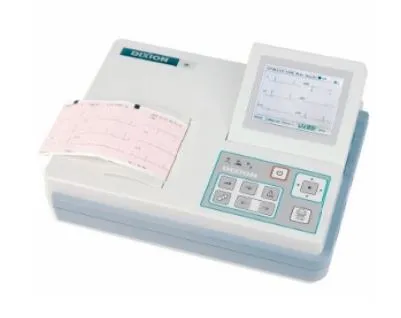

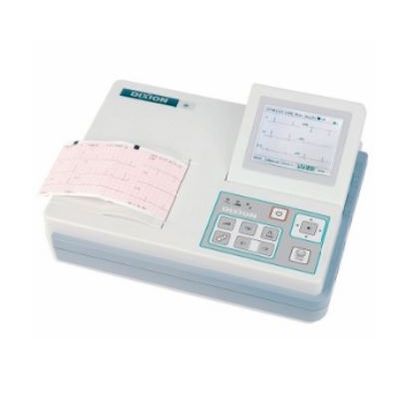

Dixion -Model 1003 -3-Channel ECG System
Portable digital 3-channel ECG machine with modern design. Easy to use with a membrane keyboard. ECG data storage. Automatic ECG data interpretation. Built-in battery and automatic switch-over of power supply. Built-in thermal printer. Data transmission to PC.
Portable digital 3-channel electrocardiograph
- Modern design
- Folding LCD display 320×240mm
- 3-channel representation of all 12 leads simultaneously
- Flexible printing solutions
- Built-in high resolution thermal printer
- Built-in rechargable Li-ion battery, AC/DC power supply
- Well designed touch panel
- Ethernet, RS-232, USB connection to PC Data transmission
- Automatic ECG parameter measurement and interpritation tested with AHA/CSE/MIT databases
- Complete digital filter, no baseline drift, AC, EMG interference
- Baseline automatically adjustable, optimizing printing position
- Auto/manual operation selectable
- Lead-off detection and alarm
- Internal storage for up to 500 ECG records
Lead: 12 standard leads
Input Circuit: Floating input circuit, protection from defibrillation (optional:pace-maker detection)
Time constant: ≥3.2s
Frequency Response: 0.05Hz – 150 Hz
Sensitivity: 2.5, 5, 10, 20 (mm/mV), AGC
Input Impedance: ≥50MΩ (10Hz)
Input Circuit Current: ≤50 nA
Noise Level: ≤12.5 µVp-p
Anti Baseline Drift: Automatic
Filter: EMG-Filter: 25Hz/35Hz/45Hz/Off
DFT-Filter: 0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
AC-Filter: On/Off
LOWPASS-filter:150Hz/100Hz/75Hz
CMRR: ≥110 dB/≥115 dB
Recording Mode: Auto/Manual
Safety Standarts: IEC 60601-1:2005
EN 60601-1:2006
EN 60601-1-2:2007
IEC 60601-1-2:2007
IEC/EN60601-2-25
Power Supply: AC: 100 V-115 V/220 V-240 V, 50/60 Hz
Built-in rechargeable Li-ion battery: voltage 14.8 V
(can work about 6.5 hours)
Recorder: Thermal printer
Dot structure: 384 dots/line
Dot pitch: 0.125 mm (8 dots/mm)
Dot size: 0.125mm x 0.12mm
Printing density: 8 dots per mm / 200 dots per inch (amplitude axes)
40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)
Record paper: 80mm x 30m (rolled thermal paper)
80mm×70mm×200pages (folded thermal paper)
Paper speed: 5; 6.25;10;12.5;25;50mm/s ± 3%
Dimension: 290x 220×85 mm±2mm
Weight: 2.5kg
Display: 320×240 pixels LCD-Interface
External Input/Output: Input: ≥ 100kΩ; Sensitivity 10mm/V ± 5%
Output: ≤ 100kΩ Sensitivity 1V/mV±5%
Communication interface: RS-232, Ethernet, USB
