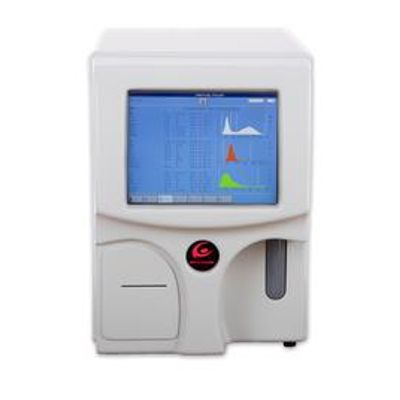

Phoenix - Model NCC-30 VET - 3-Diff Hematology Analyzer
Every veterinary laboratory’s favourite companion – reliable results for a wide range of animal species. Phoenix NCC-VET 30 is a compact device designed to provide the highest quality of animal healthcare. With available 13 animal types and 3 more defined by the user, this model covers a huge part of the animal kingdom from small farm animals and common family pets to big cattle and race breeds. Low sample volume, intuitive and user-friendly software and excellent performances are among the most reputable features of this analyzer. Neomedica puts a lot of effort into research and development of veterinary cell counters; we are proud of the results achieved for some uncommon species and will continue to develop new parameters in order to be even more distinguished on the veterinary market. Specially formulated reagents guarantee precise analyses and excellent cost-effectiveness.
- Principle WBC/RBC/PLT: Electrical impedance HGB: Photoelectric colorimetry
- 3-part differentiation of WBC
- 24 parameters including 3 histograms (WBC, RBC, PLT)
- Parameters WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC
- Animal species 13 animal types including: Dog, Horse, Cat, Monkey, Cow, Pig, Buffalo, Rabbit, Camel, Rat, Mouse, Sheep, Goat + 3 types defined by user
- Mode Whole blood, Capillary, Prediluted
- Sample volume Whole blood 10 µl, Prediluted 20 µl
- Dimension of aperture WBC/RBC/PLT: 80 µm
- General throughput 40 samples/hour
- Storage More than 100.000 sample results including histograms
- QC mode L-J, X, X-R, X-B
- Calibration mode Manual & auto calibration, calibration and QC program for each animal
- Linux operating system
- Display High quality touch screen: large 10.4’’ color LCD screen with touch function
- Power supply AC100-240V~50/60 Hz
- Interface Parallel port and USB for external printer; LIS and HIS support with HL7 protocol; RS232 support, optional barcode reader
- Report 57 mm type internal thermal printer, automatic printout
- Alarm and warnings Error messages
- Dimensions 650x470x600mm (WxDxH), 23 kg
