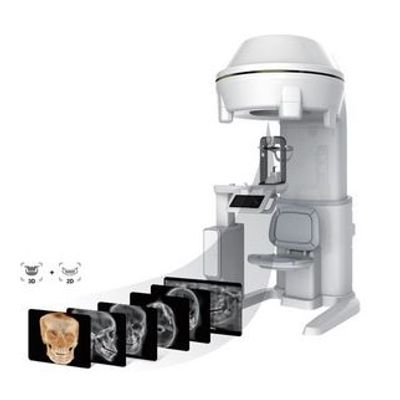

Green -Model 21 -3D Dental Imaging System

FromVatech
SHARE

Multi-modality CBCT, most comprehensive set of FOV sizes collimated from 21x19 down to 8x8, to provide a whole array of diagnostic tools to the discerning clinicians.

Most popular related searches

FOV Size 21x19

  • Oral and maxillofacial surgery
  • Facial reconstructions
  • Orthodontic treatment planning
  • Complex orthognathic cases

1 Scan 6 Images

  • CBCT
  • Auto Pano
  • Auto Ceph[PA]
  • Auto Ceph[Lateral]
  • Auto Ceph[SMV]
  • Auto Ceph[Waters’ view]
  • Function CT [Auto Pano/Auto Ceph] + Pano + 3D Photo(Optional)
  • CT - FOV Size (cm) Dental CT : 21 x 19, 17 x 15, 12 x 9, 8 x 8
  • ENT CT : 21 x 19, 17 x 11 [TB&TNS], 17 x 11 [Airway]
  • Scan Time (sec) Pano : 13.5
  • CT : 18
  • Voxel Size (mm) 0.12 ~ 0.4
  • Sensor Type CMOS
  • Focal Spot 0.5 mm
  • Gray Scale 14 bit
  • Tube Voltage 60 - 120 kV
  • Current 4 - 10 mA
  • Patient Position Seated / Wheel-chair accessible
  • Weight 321 kg [708lbs]
