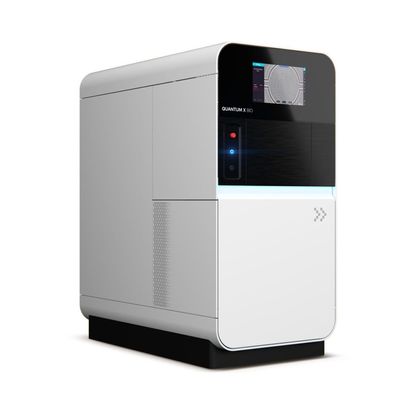

Quantum -Model X bio -3D Microfabrication Device for Biological and Biomedical Applications
Quantum X bio provides all the features you need for printing with bioresins containing living cells – and keeping them alive. This allows you to explore exciting new applications like vascularized tissue printing, smart / living materials, topology for cell mechanics and migrations, sub-micron patterning and more.
- Open system compatible with any available bioresin
- Cell-friendly wavelength (780 nm)
- Sterile, temperature-controlled environment
- Cell viability >90% possible
3D cell culture
Cultivate cells in 3D printed microwell arrays. Thanks to the use of biocompatible materials, the cells can attach and proliferate as seen in the fluorescent microscope image.
Vasculature fabrication
By 3D bioprinting complex microfluidic structures, vasculature models can be effectively fabricated. Here, the various circuits can be seen by flushing each structure with different colored fluids.
Drug delivery
Due to the precise microfabrication technology, the Quantum X bio enables 3D printed drug delivery applications. The image demonstrates our technology’s ability to realize high aspect ratio.
Optimized for cellular work
A temperature-controlled environment in conjunction with onboard sterility measures makes the Quantum X bio the go-to system for exploring biological applications.
Intuitive software
With user-friendly software solutions and a library of proven bioprinting STL models, the Quantum X bio promises for an intuitive and straightforward set up.
Smart, connected workflows
Ensure quality of your print job from start to finish through sensors and video data. Save time by controlling the system from the touch screen or the desktop software.
Unprecedented accuracy
Unlock high-performance 3D bioprinting with feature resolution down to 100nm on areas up to 25 cm².
Flexibility prioritized
Print virtually any 3D design with unmatched precision and speed on a wide range of substrates – including microscope slides and petri dishes.
Extensive biomaterial offerings
Choose between our tailored, functionalized biomaterials developed at Nanoscribe, CELLINK and Advanced BioMatrix, or from externally available photoresins.
- Rapid prototyping with high precision, design freedom and a straightforward workflow
- Cell-friendly wavelength 780 nm
- Industry-proven platform for many substrate types
- Nano Clean Chamber Technology, ensuring sterility
- Temperature-stable print chamber environment with substrate temperature control
- Wide range of universal and application-specific printing
- Custom materials usable
Benchmark Scores
Surface roughness: down to?≤?5?nm
Minimum feature size¹: down to 100 nm
Shape accuracy: down to ≤ 200 nm
Batch processing: up to 200 typical mesoscale structures over night
Autofocus precision: down to?≤?30 nm
Print field diameter : 25 mm divided by lens magnification
Maximum scan speed ²: 6.25 m/s divided by lens magnification
General system properties
Printing technology:
- Layer-by-layer 3D printing based on Two-Photon Polymerization (2PP)
- Two-Photon Grayscale Lithography (2GL®) with voxel tuning capability
Substrates:
- Microscope slides (3 x 1” / 76 x 26 mm)
- Wafers 1” (25.4 mm) to 6” (150 mm)
- Glass, silicon, and further transparent and opaque materials
- Petri Dishes (35 or 50 mm)
Photoresins:
- Advanced BioMatrix Hydrogels
- Xpect-inx Bioinks
- Nanoscribe IP-Photoresins (polymers)
- Nanoscribe GP Photoresin (glass)
- Customer User Materials
Maximum printing area: 50 x 50 mm²
