Hexanium -Model ACIF -3D Printed Standalone Cervical Interbody System
FromSpineVision

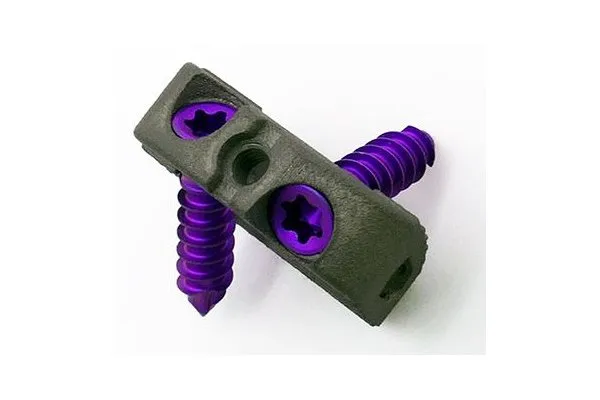

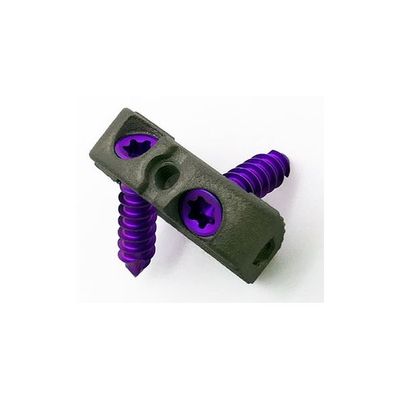

The Hexanium ACIF cage is a 3D printed standalone cervical interbody system made of titanium. It combines titanium rough surface, high porosity and honeycomb structure. The user-friendly one-step locking mechanism was developed to make the surgery fast.
Most popular related searches
cervical interbody
medical device manufacturer
cervical system
cervical cage
bone graft
medical device
implant fit
patient anatomy
implant
anatomy
Standalone cervical cage with smart features
- Zero profile cage
- Integrated one-step locking mechanism
- Fixed screws: 38° in cranial/caudal and 10° in median/lateral plane
Osteoconductive design to promote fusion
- Maximized porosity for enhanced surface areas (optimize the surface area contact with tissues)
- Rough titanium surfaces for enhanced surface areas (optimize the surface area contact with tissues)
- Resistance of honeycomb-like structure allows multiple windows for use of bone graft evenly distributed over the device
Comprehensive range of implants to fit patient’s anatomy
- 8 heights from 5 mm to 12 mm in 1mm increment. Heights 11 and 12 are not available in Europe
- 2 different shapes (wedge and convex)
- 6° lordosis to improve segmental lordosis for both shapes
- 3 different footprints « Small » (W15xD12), « Medium » (W17xD14) or « Large » (W19xD15). Footprint L is not available in Europe
- Self-drilling screws of diameter 3.5mm or 3.8mm
Streamlined & ergonomic instrumentation to ensure a safe & accurate placement
- Specific guides for screws positioning
- Smart distractor compressor system
CE marking: YES
FDA clearance: YES
Hexanium® ACIF is a class IIb medical device, manufactured by SPINEVISION SAS – France. Hexanium, SPINEVISION and its logos are registered trademarks of SPINEVISION or one of its subsidiaries. See package insert for labeling information.
