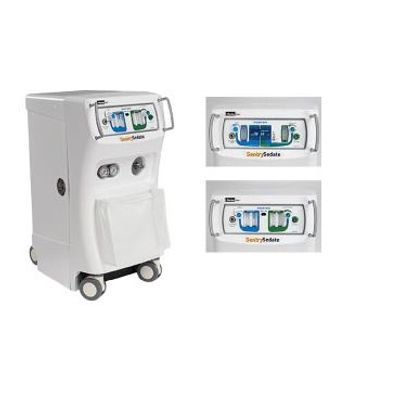

Sentry Sedate - 4-Cylinder Nitrous Oxide Sedation System

• Porter Sentry Sedate with MXR-1 Flowmeter
• Porter Sentry Sedate with MXR-1 Flowmeter and AVS
• Porter Sentry Sedate with MXR-D Flowmeter
• Porter Sentry Sedate with MXR-D Flowmeter and AVS

Porter’s newest Nitrous Oxide Sedation System features portability and security with:

• Dual Locking Doors
• Holds 2 Oxygen and 2 Nitrous Oxide "E" Cylinders
• Internal and External Storage
• Working Surface
• Durable Locking Wheels

Sentry Sedate’s SENTRY-34 model includes the Porter MXR-1 flowmeter:

• The “gold standard” in nitrous oxide delivery
• Precision glass flow tubes for real time visualization and confirmation of gas flow
• Built for reliability and durability
• Oxygen quick connect conveniently located on flowmeter faceplate

Parker variable area flowmeters include 65mm and 150mm scale length tube assemblies and are available in either forged body or side-plate construction. Forged body models feature a wrap-around window for full 180° tube visibility and an attractive forged one-piece bacl anodized aluminum body. Side-plate constructed models are conveniently interchangeable with competitive designs.

Parker control valves, including the exclusive Torque Guard cartridge, can be added to either style flowmeter for precise flow indication and control in one economical unit. Multi-tube side-plate models, ranging from two to six tubes, are available with or without control valves and can include individual inlet and outlet connections or manifold ports according to your specifications.

SPECIFICATIONS
Capacities

• Length: Models F65 and 65- 65mm; Models F150 and 150- 150mm.
• Type: Fused on metering tube with contrasting yellow background
• Graduations: Standard- Models F65 and 65: 0-65mm w/ calibration data; Models F150 and 150: 0-150mm w/ calibration data.
• Optional: Direct reading scales

Ratings

• Pressure/Temperature: Neoprene packing/ Buna N O-rings- 200 psig at temperatures up to 160°F Viton® packing/Viton O-rings-200 psig at temperatures up to 200°F

Performance

• Accuracy: Models F65 and 65: ± 10%
