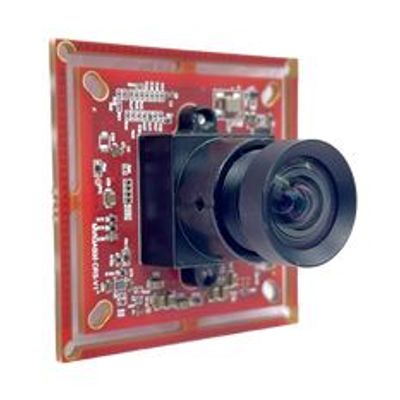

Vadzo - Model Bolt-1335CRS - 4K MIPI Camera
The Vadzo Bolt-1335CRS is a 4K MIPI camera that leverages the Onsemi AR1335 CMOS Sensor, equipped with a high-performance image signal processor (ISP). It captures images at a maximum resolution of 13MP with a pixel size of 1.1 µm by 1.1 µm and supports video streaming in 4K, 1080p, and 720p formats. This camera is ideal for applications in retail AI, facial recognition, kiosks, and digital signage. It is engineered for integration with platforms such as Raspberry Pi, Nvidia Nano, and Nvidia XavierNX. The camera is compatible with 2 Lane MIPI CSI-2 and 4 Lane MIPI CSI-2 interfaces and features an S Mount (M12 Standard) optics with a 74-degree field of view. With dimensions of 38mm by 38mm transformable to 32mm by 32mm, it operates in temperatures ranging from -30°C to 70°C, ensuring robust functionality across various environments.
General Information
- Product Family : Bolt Series
- Camera Model : Vadzo Bolt-1335CRS
Sensor
- Sensor : : AR1335 CMOS Sensor from Onsemi
- Sensor Format : 1/3.2"
- Pixel Size : 1.1 µm x 1.1 µm
- Max Resolution : 13MP - 4208(H) x 3120(V)
- Shutter : Rolling Shutter
- Chroma : Color
Camera
- Optics : : S Mount (M12 Standard)
- Lens FOV : 74 DFOV
- Interface : 2 Lane MIPI CSI-2 & 4 Lane MIPI CSI-2
- Operating Temperature : -30⁰C to 70⁰C
- Dimension : 38mm (L) x 38mm (B) convertible to 32mm (L) x 32mm (B)
- Weight : : 8 Grams (Without Lens)
- Conformity : RoHS 3, REACH
Vadzo Bolt-1335CRS is a 4K MIPI Camera based on Onsemi AR1335 Sensor coupled with high-performance ISP. This 4K MIPI camera delivers max resolution of 13MP and Video streaming of 4K, 1080p, and 720p. Applicable in use cases such as retail AI camera, medical device camera, facial recognition camera, kiosk camera, digital signage camera, etc. Bolt-1335CRS can be integrated with solutions based on platforms such as Raspberry PI, Nvidia Nano, Nvidia XavierNX, etc.
