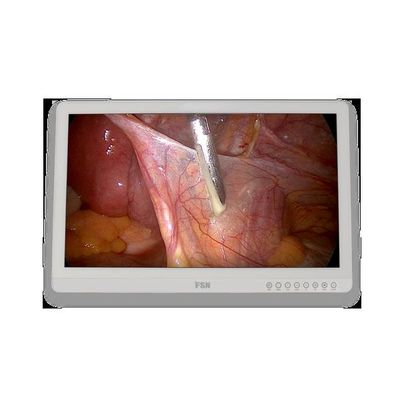

Model FM-A2701D, FM-A2701DS 27 inch -4K UHD Medical Displays
FM-A2701D has video connections for HDMI, DisplayPort, and DVI. FM-A2701DS adds support for 3G SDI, which offers quad link formats as 2-sample interleave or square division, giving it an impressive selection of signal input capabilities. Like all FSN medical monitors, these models are designed for fast detection of incoming video, thanks to robust mode tables. 4K UHD resolution delivers 4 times more pixels than a full HD display. This means that during surgery fine details become sharper and easier to identify. The touch menu controls are conveniently located in the lower right corner. Hospital safe rounded bezel corners guard against accidental contact injuries when boom arm mounted in the operating room at head level.
- 4K UHD (3840 x 2160 pixels)
- 4 x 3GSDI (FM-A2701DS)
- Ready, out of the box, for 4K endoscopy applications
- The sharpest possible image for surgical visualization
- High brightness LED technology
- Streamlined design – slim profile, narrow bezel
Item: Description
Panel: 27 inch TFT LCD (LED)
Resolution: 3840 x 2160 pixel
Aspect Ratio: 16 : 9
Active Area: 596.74 (H)mm x 335.66 (V)mm
Pixel Pitch (mm): 0.1554 x 0.1554
Response Time (typical): 14 ms (gray to gray)
Number of Colors: 1.07 Billion
Brightness (typical): 800 cd/m2
Gamut: BT.709 and BT.2020 compatible
Contrast Ratio (typical): 1000 : 1
Surface Treatment: Anti-glare
Viewing Angle (CR>10): R/L 178°, U/D 178°
Input Signal FM-A2701D: 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link)
Input Signal FM-A2701DS: 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G)
Output Signal FM-A2701D: 1 x DP 1.2 (SST), 1 x DVI (single link)
Output Signal FM-A2701DS: 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G)
Power Supply: AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
Power Consumption FM-A2701D: 90W max
Power Consumption FM-A2701DS: 110W max
Accessories Included: User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14
Unit Dimension: 658.8(W) x 426(H) x 60(D) mm, 25.94(W) x 16.77(H) x 2.36(D) inch
Package Dimension: 755.65(W) x 654.05(H) x 234.95(D) mm, 29.75(W) x 25.75(H) x 9.25(D) inch
IP Rating: IP30 - overall, IP43 - front side only
IK Rating: IK07 with 5H AR glass
Weight FM-A2701D: 8.18 kg, 18.03 lbs. (monitor with cover), 13.19 kg, 29.08 lbs. (shipping package)
Weight FM-A2701DS: 8.8 kg, 19.4 lbs. (monitor with cover), 13.81 kg, 30.45 lbs. (shipping package)
Certifications: ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
