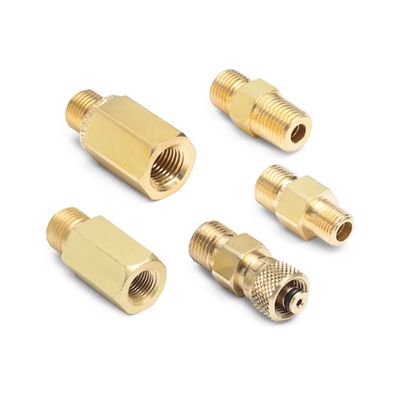

Model QTHA-KIT0 - 5 pc Quick-Test Fitting Kit
A kit of the most commonly used adapters so that you have what you need in the field: 1/8" Male NPT Adapter, Brass: 1/8" male NPT x male Quick-test, no check-valve, brass. 1/8" Female NPT adapter, Brass: 1/8" female NPT x male Quick-test, no check-valve, brass. 1/4" Male NPT Adapter, Brass: 1/4" male NPT x male Quick-test, no check-valve, brass. 1/4" Female NPT adapter, Brass: 1/4" female NPT x male Quick-test, no check-valve, brass. 1/4" Tube adapter, Brass: 1/4" tube fitting x male Quick-test, no check-valve, brass.
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Materials: Brass
Seal Materials: Buna-N
Number of Adapters: 5
Number of Hoses: 0
Country of origin: USA
1/8" Male NPT Adapter, Brass QTHA-1MB0
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Min Operating Temperature: 0 °F / -18 °C
Seal Materials: Buna-N
Wrench Size: 9/16 In / 15 mm
Wrench Size: 15 mm / 9/16 in
End 1 Connector:
1/8" Male NPT (ASME B1.20.1)
1/8" Male NPT (ASME B1.20.1) Detail
End 1 Direction: Left
End 2 Connector:
Male Quick-test
Male Quick-test Detail
End 2 Direction: Left
1/8" Female NPT adapter, Brass QTHA-1FB0
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Seal Materials: Buna-N
Wrench Size: 5/8 In / 16 mm
Wrench Size: 16 mm / 5/8 in
End 1 Connector:
1/8" Female NPT (ASME B1.20.1)
1/8" Female NPT (ASME B1.20.1) Detail
End 1 Direction: Left
End 2 Connector:
Male Quick-test
Male Quick-test Detail
End 2 Direction: Left
1/4" Male NPT Adapter, Brass QTHA-2MB0
Burst Pressure: 20000 PSI / 1380 bar / 140 MPa
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Min Operating Temperature: 0 °F / -18 °C
Seal Materials: Buna-N
Wrench Size: 9/16 In / 15 mm
Wrench Size: 15 mm / 9/16 in
End 1 Connector:
1/4" Male NPT (ASME B1.20.1)
1/4" Male NPT (ASME B1.20.1) Detail
End 1 Direction: Left
End 2 Connector:
Male Quick-test
Male Quick-test Detail
End 2 Direction: Left
1/4" Female NPT adapter, Brass QTHA-2FB0
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Seal Materials: Buna-N
Wrench Size: 3/4 In / 20 mm
Wrench Size: 19 mm / 23/32 in
End 1 Connector:
1/4" Female NPT (ASME B1.20.1)
1/4" Female NPT (ASME B1.20.1) Detail
End 1 Direction: Left
End 2 Connector:
Male Quick-test
Male Quick-test Detail
End 2 Direction: Left
1/4" Tube adapter, Brass QTHA-2TB0
Country of origin: USA
Materials: Brass
Max Operating Temperature: 225 °F / 105 °C
Max Pressure: 5000 PSI / 350 bar / 35 MPa
Max Vacuum: 0 InHg / 0.0 kPa
Seal Materials: Buna-N
End 1 Connector:
1/4" Male Tube Fitting
1/4" Male Tube Fitting Detail
End 1 Quick Disconnect: Yes
End 1 Direction: Left
End 2 Connector:
Male Quick-test
Male Quick-test Detail
End 2 Direction: Left
