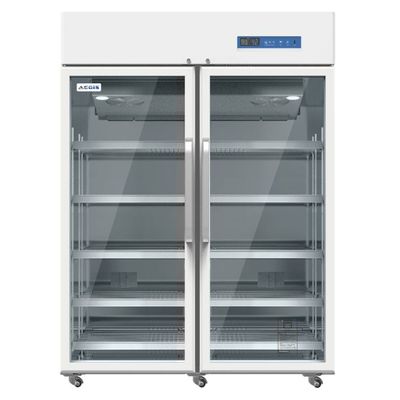

AEGIS -Model GL-RG-50M Glacier Series -50 Cuft Medical Refrigerator
The GL-RG-50M Glacier Series 50 cuft Medical Refrigerator is an upright cabinet specifically designed to meet the cooling and storage requirements in medical environments like clinics, hospitals, and research facilities. It features a spacious 46.61 cu ft (1320L) capacity and utilizes a microprocessor-based controller with a digital display for precise temperature management within the range of 1~8°C. The internal and external construction involves high-quality materials, with an external body made from spray cold rolled steel plate and an internal lining of stainless steel. For convenience, it includes 10 coated steel wired shelves, a key-locked door, LED lighting, and casters for mobility. The unit operates with an R290 refrigerant and an automatic defrost mode, ensuring efficient cooling performance. Additionally, it includes a range of safety alarms to monitor temperature variations, power failure, and system errors, along with a USB datalogger for maintaining records at 10-minute intervals for up to two years. Electrical specifications include compatibility with 220V/50Hz, 220V/60Hz, and 110V/60Hz power supplies, with a rated power consumption of 415W.
- High efficiency refrigeration system for optimal performance
- Forced-air cooling with internal fan for maximum temperature uniformity and stability
- Cooling fan is permanently lubricated for long life
- Automatic defrost maintains optimum cooling capacity
- Multiple alarm system for safe and reliable operation
- Glass door with electric heat reduces condensation
AEGIS GENERAL SPECIFICATIONS
- Cabinet Type ; Upright
- Capacity(L) ; 1320L / 46.61 cu ft
- Internal Size(W*D*H) ; 1340*800*1925mm 52.75*31.49*75.78in
- External Size(W*D*H) ; 1450*852*1985mm 57*33.54*78.14in
- NW/GW(Kgs) ; 322/430
PERFORMANCE
- Temperature Range ; 1~8℃
- Ambient Temperature ; 16-32℃
- Cooling Performance ; 5℃
- Climate Class ; N
- Controller ; Microprocessor
- Display ; Digital display
REFRIGERATION
- Compressor ; 1pc
- Cooling Method ; Air cooling
- Defrost Mode ; Automatic
- Refrigerant ; R290
CONSTRUCTION
- External Material ; Spray cold rolled steel plate
- Inner Material ; Stainless steel (Aluminum plate with spraying optional )
- Shelves ; 10(coated steel wired shelf)
- Door Lock with Key ; Yes
- Lighting ; LED
- Access Port ; 1pc. Ø 25 mm
- Casters ; 6(3 caster with brake）
- Data Logging/Interval/RT ; USB/Record every 10 minute / 2 years
- Door with heater ; yes
- Standard Accessory ; RS485，Backup battery
ALARM
- Temperature ; High/Low temperature,High ambient temperature,Condenser high temperature
- Electrical ; Power failure, Low battery
- System ; Sensor error,Door ajar，Built-in datalogger USB Failure, Remote alarm
ELECTRICAL
- Power Supply(V/HZ) ; 220/50, 220/60, 110/60
- Rated Power(W) ; 415
- Power Consumption(KWh/24h) ; 3.81
- Rated Current(A) ; 2.49
