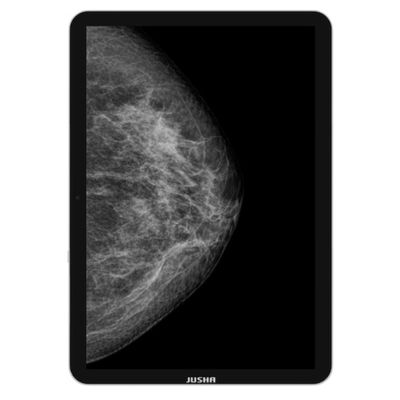

Jusha - Model CP620 - 6MP Portable Medical Grade Tablet Monitor
6MP portable medical grade tablet monitor,enables radiologist making key diagnosis decision during travel or emergency.Advanced USB-C ports giving users more convenience than ever. Touch screen makes interaction faster and more intuitive.Auto rotation,dual screen mode and ambient light sensing provides great usability in different scenarios.
Dual Thunderbolt 4 ports
With Thunderbolt™ cable, power delivery and video transmission are combined together. This portable monitor can be directly powered by laptop.
Reverse Charging
By connecting CP620 to power adapter, CP620 can charge the laptop or mobile device reversely.
Capacitive Touch Screen
The touch screen enables users directly interact with PACS and many more software with fingers. Easier and more intuitive.
Auto Rotation
With build-in gravity sensor, windows will rotate automatically with the device orientation.
Ambient Light Sensing
CP620 will monitor the ambient light in real time, and change brightness and DICOM compensation accordingly, making it more comfortable to do diagnosis in different lighting environment.
Dual Screen Mode
With two inputs connected, users can have a seamless experience like a traditional 6MP medical monitor, two independent 3MP window side by side.
- Model CP620
- Type IPS
- Backlight LED
- Diagonal size 13.5`` (342.9 mm)
- Display area 285.3 × 190.2 mm
- Resolution 3000 × 2000
- Aspect ratio 3:2
- Pixel Pitch 0.0951 × 0.0951 mm
- Color Depth 24 bit
- LUT Depth 14 bit
- Viewing angles 160°
- Maximum brightness (typical) 480 cd/m²
- Maximum calibrated brightness 500 cd/m²
- Default brightness 500 cd/m²
- Minimum brightness 300 cd/m²
- Presets DICOM?GAMMA2.2?CT/MRI-JS
- Contrast ratio 1800:1
- Response time(Ton+Toff)/2 17.5 ms
- Qualitas QA Yes
- Features Touchscreen, Dual-View, Reverse charging, ALC, Backlight stablizer, Auto-rotation
- Video input "USB Type C × 2 (3000*2000@60Hz) HDMI × 1 (3000*2000@50Hz)"
- USB Ports Upstream USB Type C × 2
- Power input "DC: 5V,3A;9V,2A;20V,2A ? AC: 100-240V~50/60Hz,1.3A"
- Typical power 18W
- Maximum power 40W
- Power saving < 0.5 W
- Backlight stabilizer Yes
- Ambient light sensor Yes
- Other sensors Temperature
- Protective glass Yes
- Housing color Silver
- (W x H x D)Dimensions with stand(W x H x D) 312.3 × 220.2 × 11.5 mm
- (W x H x D)Dimensions without stand(W x H x D) 312.3 × 220.2 × 11.5 mm
- Net weight with stand 750g
- Net weight without stand 750g
- Certications CCC, CE
