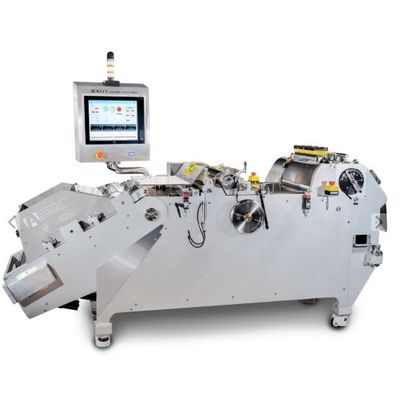

Ackley - Adjustable Angle Ramp Printer for Pharmaceutical Products
Ackley's Adjustable Angle Ramp Printer is a high-output precision offset printing system specifically designed for printing on pharmaceutical, nutraceutical, and confectionery products. It accommodates products of various shapes and sizes, using edible inks to apply logos. The printer features an adjustable Ramp Feed Angle, optimizing product flow based on individual product characteristics. Products are fed into a hopper, singulated, and gravity-fed into carrier bar pockets for precise positioning. This design leverages a continuous motion, multi-lane carrier bar for effective inspection and printing. The machine requires compressed air, power, and vacuum for operation, allowing for easy changeovers between different products. It is suitable for large-scale production environments and offers optional ink maintenance and vision inspection systems. All operations comply with the stringent regulations of the FDA and CGMP, ensuring quality and safety throughout the production process.
- Vision inspection with vacuum-based single product rejection
- Ink Maintenance System
- OPC-UA Server Gateway
- HMI screen text translated and displayed in language of choice
- ?Secure remote support capabilities
- ?Auto-backup of product settings
- Output rate up to 500,000 / hour with vision inspection; up to 1.2 million / Hour without inspection (dependent on product and ink characteristics)
- Single Sided marking using time proven rotogravure printing
- Ability to print alpha-numeric text or graphic logos
- Ability to print with solvent or water based edible ink solutions
- Multi-lane pocket carrier bar feed system
- Machine Safety Guarding with interlocks
- Servo based motion with optical encoder position feedback
- Stainless steel sprocket assemblies teamed with precision ground roller chain for precise registration
- Quick-Release Pins for tool-less installation of carrier bars
- Quick product change over
- Adjustable Ramp Feed Angle
- User friendly interface
- Touch-screen adjustments for all inspection and printing parameters
- Programmable settings for up to 50 products
- Low maintenance cost
- Tower light with buzzer
Pharmaceutical Tablet & Capsule Printing Machine
Ackley’s high-output precision offset printing system uses edible inks to place logos onto pharmaceutical, nutraceutical and confectionery products of all shapes and sizes. Features an adjustable Ramp Feed Angle to optimize feed based on product flow characteristics. Bulk product is fed into the hopper, where each product is efficiently singulated and gravity-fed into carrier bar pockets for precise positioning. The continuous motion, multiple-lane carrier bar conveyor feed system exposes the top surface for inspection and printing. Requires compressed air, power & vacuum for operation. Simple change over between products. Ideal for large scale productions. Optional ink maintenance and vision inspection systems available.
