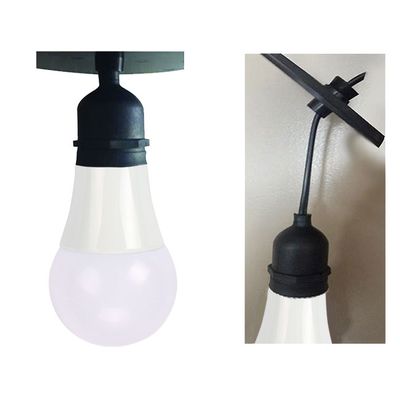

Model Tru Beam - Adjustable Waterproof Light Socket
Features: Waterproof connection between socket and junction box. Waterproof connection between bulb and socket. Lights always shine directly down on floor, even with pitched ceiling. All components are UL V-O Flame Retardant rated. Height of bulb is adjustable. With UL Recognized Socket, Wet Location Approved File E473668.
Electrical Specifications
Wiring Access: 6° 16 AWG Wire
Max. Lamp Wattage: 660W
Voltage: 110 to 277 Volt
Mechanical Specifications
Lamp Socket Base: Medium E-26 / E-27
Operator Type: Switch
Circuit: Single Circuit
Sequence: ON-OFF Dimmable
Termination: 2 Wire Cable
Mounting Type: Twist-Lock
Fits Outlet / Junction Box Size: 3-1/4 or 4 inch
Material Specification
Body Material: Flame Retardant Thermoplastic Elastomer Over-molded on Glass Reinforced Polybutylene Terephthalate
Socket Shell Material: Nickel Plated Brass
Color: Black
