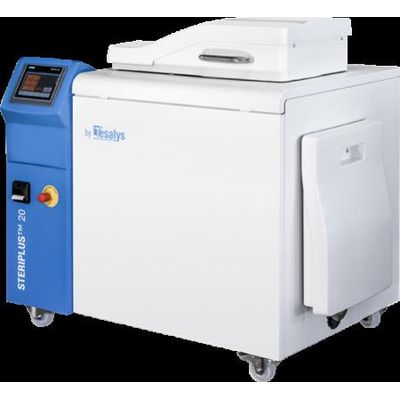

Steriplus - Model 20 - Advanced Biomedical Waste Treatment Solutions

SHARE

Tesalys STERIPLUS systems are the ideal solution to safely inactivate your infectious waste on site. Their integrated TESASHRED shredding system not only allows a consequent reduction in the volume and weight of waste, but also guarantees their treatment at heart.

Most popular related searches
medical waste treatment
heart data
biomedical
medical laboratory

LOADING CHAMBER CAPACITY: 20 L
LOADING CHAMBER USEFUL DIMENSIONS (W x D x H): 320 x 247 x 273 mm
LOADING CAPACITY (containers): 1 X TESABOX  20
TOTAL CYCLE TIME (NF X30-503-1 standard) (1): 30 to 35 min
TOTAL CYCLE TIME in working conditions (2): 30 to 50 min.
LOADING CAPACITY (KG/CYCLE): 1,6 to 2,4 kg/cycle - Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste
2,4 to 4 kg/cycle - Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
TREATMENT CAPACITY (KG/H) (3): 2 to 3 kg/h - Based on an average waste density of 0,08 to 0,12kg/L for Healthcare Waste
3 to 5 kg/h - Based on an average waste density of 0,12 to 0,2kg/L for Lab/Humid/Liquid Waste
MAX QUANTITY OF LIQUID RECOMMENDED PER CYCLE (4): 6 L
EXTERNAL DIMENSIONS (w x d x h): 1300 x 895 x 1210 mm
NET WEIGHT: 530 kg
LOADING CHAMBER: Stainless steel with PTFE coating
TREATMENT CHAMBER: AISI 304L stainless steel
STEAM GENERATOR: AISI 304L stainless steel (chamber) & Highly corrosion-resistant Hastelloy®
WATER SOFTENER: Optional (external)
WATER BOOSTER PUMP AND AIR COMPRESSOR: Built-in
WASTE SHREDDER: Structure: AISI 304L stainless steel & Blades: High-strength steel
PIPING: Stainless steel/PTFE flexible hosing
CHASSIS: Painted steel
BODYWORK: Composite material / Painted steel
CYCLE TRACEABILITY - THROUGH PRINTOUT: Built-in
USB PORT: Built-in

Compact

The smallest machine in our range STERIPLUS™, the STERIPLUS™ 20 offers an efficient solution for on-site waste treatment.

Suitable for small and medium spaces

It can be easily installed in a small room. It is perfectly adapted to small and medium structures, such as laboratories or medical centres.

Economic

The STERIPLUS 20 is very energy-efficient and does not require much water.

WATER
Requirements: Softened water (4-8°TH)
Consumption: 5 liters / cycle

ELECTRICITY
Requirements: 380-400 V III N, 50Hz/60Hz
Consumption: 1 kW/h / cycle

DRAIN: ø 32 mm internal (heat-resistant)
STEAM/COMPRESSED AIR: Produced by the integrated steam generator and air compressor; no external connection required.

  • Maintenance parts kit STERIPLUSTM
  • System waste unloading system
  • Adaptation to different voltages / frequencies
  • Special packaging
