IngMar -Model ASL 5000 -Advanced Lung Simulator

• Manage patient conditions such as ARDS, COPD, asthma, or post-op patient. View a larger scope of training applications
• Adjust the ventilator after a change in patient conditions. View ASL 5000-created patient-ventilator interactions
• Practice skills such as intubation, needle decompression, and NIV
• Achieve highly realistic ventilator response including specific types of patient-ventilator synchrony issues, alarms only when appropriate, and evidence of ready-to-wean patients

• Offers the widest range of airway resistance, lung compliance, and spontaneous effort parameters of any simulator
• Holds PEEP at any clinically relevant level even > 20 cmH₂O
• Can be used with any ventilator – any mode of ventilation
• Train clinicians on all respiratory treatment modalities including bag-valve mask ventilation, non-invasive ventilation, airway management, mechanical ventilation, and anesthesiology

• Manage both the ASL 5000, SimMan, SimMan ALS, Nursing Anne Simulator or SimBaby directly from LLEAP, the Laerdal Learning Application

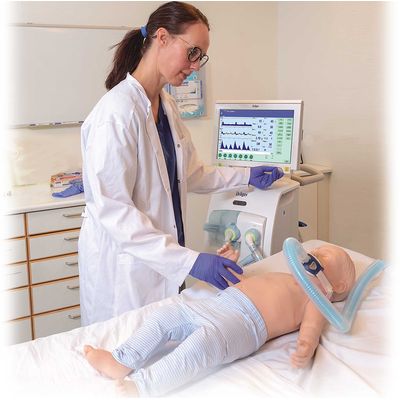

• Connect the ASL 5000 to the manikin for fully immersive training, interdisciplinary training and competency evaluations
• Connect the ASL 5000 directly to the ventilator and connect to Virtual Manikin for demonstrating specific interactions, new hire, and new ventilator onboarding

• The ASL 5000™ Lung Solution, developed in collaboration with Laerdal, allows you to integrate the world’s most realistic breathing simulator, the ASL 5000, with the SimMan 3G, SimMan ALS, Nursing Anne Simulator and SimBaby. Use your SimMan, SimMan ALS, Nursing Anne Simulator or SimBaby to conduct basic to advanced ventilation management training in anesthesia, critical care, emergency medicine, pulmonology, and respiratory care.
• Ventilator-grade spontaneous breathing (passive to 100 bpm) with Muscle Pressure from 0 to -100 cmH2O (0 to -30 cmH2O for SimBaby)
• Tidal Volume 2.5 L
• Connect to any ventilator – just as you would a real patient
• Use with any mode of ventilation including Pressure/Volume Control, Pressure Support, Jet Ventilation, APRV, PAV, HFOV, NIV, SIMV
• Compliance – 0.5 to 250 mL/cmH2O (0.5 to 15 mL/cmH2O for SimBaby)
• Resistance – 8 to 150 cmH2O/L/s (23 to 250 cmH2O/L/s for SimBaby)
• Holds PEEP from 0 to > 20 cmH2O
• Easily activate pre-programmed respiratory conditions with variable levels of severity including Normal, Asthma, ARDS, Interstitial Lung Disease (ILD), COPD, respiratory syncytial virus (RSV), and broncho-pulmonary dysplasia (BPD)
• Lung parameters can be changed during scenario remotely, which have an immediate impact on the ventilator
• Set independent inspiratory and expiratory resistances
• Fully integrated with LLEAP interface to provide learners with additional patient information such as blood pressure, heart rate, SpO2, etCO2, respiratory rate, lung sounds, and more
• Simulate scenarios with a spontaneously breathing patient supported on a ventilator. View ASL 5000-created patient-ventilator interactions
• Adjustable (I:E) ratio. Inspiratory Time from 0 to 20 seconds and Expiratory Time from 0 to 20 seconds
• Real-time display of waveforms and graphics
• Create and save an unlimited number of user-defined respiratory conditions including pneumothorax, bronchospasm, pneumonia, cough, cystic fibrosis, flash pulmonary edema, and more. View a larger scope of training applications
• Simulate scenarios where patient conditions change over time

The ASL 5000 Lung Solution is compatible with the following models:

• SimMan® 3G
• SimMan® ALS
• SimMan ® 3G Trauma
• SimMan® Essential
• SimMan® Essential Bleeding
• Nursing Anne Simulator
• SimBaby™

You can manage both the ASL 5000 and SimMan, SimMan ALS, Nursing Anne Simulator or SimBaby directly from LLEAP, the Laerdal Learning Application, through the ASL 5000 Lung Solution LLEAP plug-in.

You can keep it simple and use pre-programmed respiratory conditions with variable levels of severity. These include Normal, Asthma, ARDS, Interstitial Lung Disease (ILD), COPD Bronchopulmonary dysplasia (BPD), and Infant respiratory distress syndrome (IRDS), and Respiratory syncytial virus (RSV). You can also create and save an unlimited number of user-defined respiratory conditions including pneumothorax, bronchospasm, pneumonia, cough, cystic fibrosis, flash pulmonary edema, and more.
