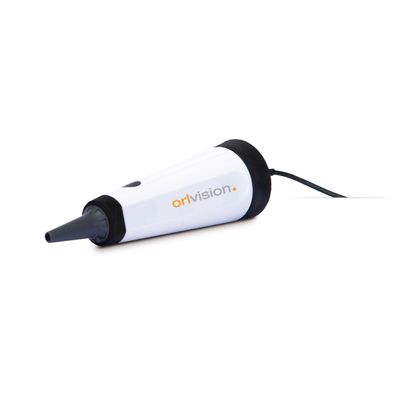

Orlvision -Model Video-Otoscope OX2 -Advanced Technology for Safe Diagnosis.
Seeing creates Confidence: Individual consultation of every customer is crucial for his under standing in your expertise and capacity. Due to the „participation view" on a monitor facilitates the dialog with the patient, supports you in the effective customer service, strengthens the business confi dence and contributes to a higher customer satisfaction and customer loyalty. The video otoscope OX2 was developed especially for the visual examination of the auricle, the outer auditory canal and the eardrum. The OX2 is very easy to install, quickly comprehensive and easy to operate. Disposable ear funnel with different diameters guarantee hygienic proper visual surveys.
Optimal image display
The images and videos are processed with the USB 2.0 connector from the PC or laptop. The images can also be displayed on a medical monitor.
Time saving training
In addition is the OX2 the ideal tool for an efficient training of your staff for fitting hearing aids as well as the insertion and removing the hearing aid.
Mobile and versatile
The stand of the video otoscope can either be used on the desktop or as a wall-mount device. The power supply comes from the USB 2.0 connector. This is ideal for mobile applications such as home visits. The optional soft shell transportation case will protect the otoscope.
| Model | OX2 | |
| DiameterØ (Probe / Ear funnel) | 4.0 mm / 2.5 mm + 4.0 mm | |
| Focal Distance | 8 - 20 mm | |
| Interfaces | USB | |
| Power Supply / Consumption | USB / max. 0.5 A | |
| Risc Class (according to medical products law) | 1 | |
| Protection Class (against electric shock) | Class II | |
| Operating Mode | Continous operation | |
| Protection Class | IP65 | |
| Temperature (Transport / Operation) | -10° C to +70° C / 0° C to 40° C | |
| Relative Humidity | 0% to 95% | |
| Air Pressure | 950hpa to 1050hpa | |
