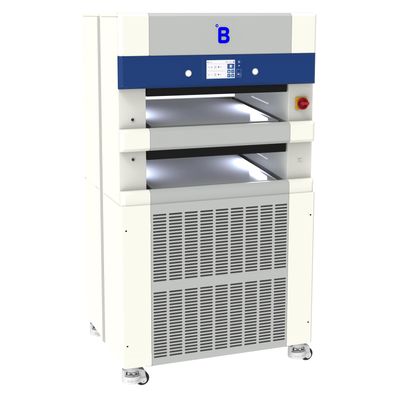

B-Medical Systems -Model CSF61 L -Air-Cooled Plasma Contact Shock Freezer
Set Temperature: - 50°C. Climate class (ambient temperature range): +10°C to +32°C. External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in. Refrigerant Type: R449a.
Most popular related searches

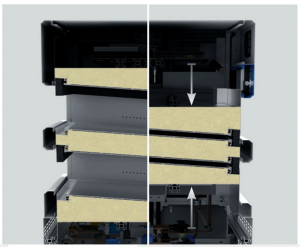

- Two cooling plates inclined at 5° for a superfast freezing cycle
- Two levels that operate independently, allowing simultaneous freezing and defrosting as necessary
- Linear actuators that self-adjust to apply the proper force against your plasma bags
- No exposure to extremely low temperatures, avoiding the crazing of the bags
- Homogeneous cooling of bags despite the presence of air bubbles or uneven filling
- Dual-stage compressors
- Multiple injection valves
- Inclined freezing plates
- Eco mode
- Low environmental impact refrigerant
- °B Connected universal software for remote monitoring, recording, and long-term archiving
- Electronic reports through °B Connected compliant with FDA 21 CFR Part 11

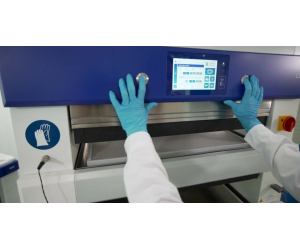

- 7” color touchscreen display at eye level with access to all functions
- Bar code scanner
- Batch management
- Advanced audio-visual alarm system with remote transmission
- USB port and SD card slot for easy export of data
- Plasma bag capacity (250 ml): 30 (single layer); 60 (double layer)
- Plasma bag capacity (850 ml): 20 (single layer)
- Set Temperature: – 50°C
- Freezing time to -30°C (250 ml): 26 min
- Freezing time to -30°C (850 ml): 45 min
- Operating temp. (pre-cooling): -40 °C
- Operating temp. (ECO): -43 °C
- Climate class (ambient temperature range): +10°C to +32°C
- Certifications: EU MDR Class IIa | SCoPE | US FDA Class II
- Cooling technology: Plates conduction
- External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in
- Net weight: 600 kg | 1322.77 lb
- Frequency: 50-60 Hz
- Supply voltage: 380-400V
- Energy consumption: 0.7 kWh/24h
- Noise level: 73 dB
- Refrigerant Type: R449a
- Display: 7" touchscreen screen
- Remote monitoring: °B Connected software
- Access control: Password or badge
- Data export: SD card | USB port
- Product Type: Plasma Contact Shock Freezer
