Cryolor
Model Celine 3 - Air Gas Cryogenic Storage
FromCryolor

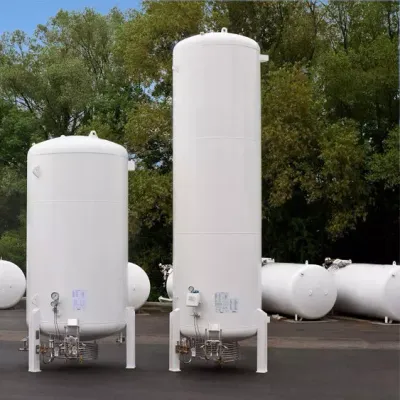

A comprehensive range of horizontal (EFH), vertical (EFV) or high pressure (RHP) vessels for liquefied nitrogen, oxygen & argon, also available for large capacities (TGR). Celine 3TM cryogenic tanks are used for the efficient, safe and long-term storage of cryogenic liquefied gases (liquid nitrogen, oxygen or argon), thanks to their double-walled, vacuum-Perlite insulated design. With various design pressures and standard capacities, CELINE 3’s versatility addresses a full spectrum of cryogenic installations. All Celine 3TM cryogenic tanks can be designed in accordance with the European Pressure Directive PED or ASME depending on the geographies.
Most popular related searches
cryogenic storage
cryogenic tank
cryogenic liquefied
cryogenic equipment
leg support
cryogenic pressure
cryogenic liquid
cryogenic air
User-friendly control cabinet
Ease of use for operators/technicians
Resistant to high winds and earthquakes thanks to calculated support legs
Small tanks
- High Pressure cryogenic storage tanks (RHP): standard sizes available between 3,000L to 63,000L. Maximum Allowable Working Pressure of 37 bar (540 psig)
- Vertical Cryogenic storage tanks (EFV): standard sizes available between 6,000L to 77,000L. Maximum Allowable Working Pressure of 17 bar (250 psig)
- Horizontal Cryogenic storage tanks (EFH): standard sizes available between 6,000L to 77,000L.Maximum Allowable Working Pressure of 17 bar (250 psig)
Large capacity tanks (TGR) > 77,000 L
Can be provided upon specific request
On request, our team proposes a maintenance & repair program to optimize customer’s operational costs on the cryogenic equipment to guarantee its longevity
