LifeAire - Model Aire~HCX Series - Air Purification for Hospitals and Healthcare
The Aire~HCX series in-duct modules offer the most comprehensive methodology to kill biologicals that can cause hospital acquired infections (HAIs) or subclinical infections. The systems have been genomically and mathematically modeled, and tested towards kill of the anthrax spore and the delivery of a 9-log reduction of biological pathogens.

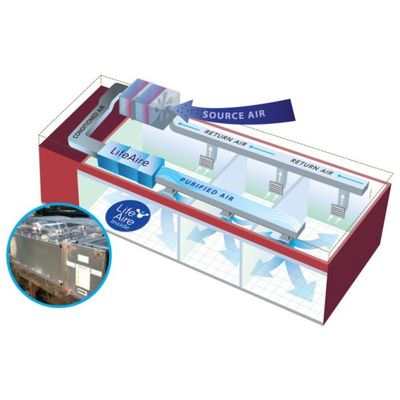

It simply replaces a section of your planned or existing ductwork. All-weather options are also available for rooftop installations.
Available in three standard sizes, and able to be scaled, Aire~HCX efficiently services critical spaces of differing larger sizes and dimensions.
Aire~HCX is patented, multi-staged molecular media and UV technologies that neutralizes up to 99.99% of biological and chemical contaminants within source and return air—in a single pass through the system.
- Design Specification Objectives
- Total VOCs: <50 ppb
- Biologicals: <1 cfu/m3
- Particulates: ISO Class 6
- Ozone: None
- Supply Air Volume: max 1000 CFM
- Pressure Drop: 0.1” w.g.
- Size: 6`3"l x 2`3"w x 2`7"h
- In-Duct and All Weather Systems
- Supply Air Volume: max 2000 CFM
- Pressure Drop: 0.1” w.g.
- Size: 6`3"l x 4`4"w x 2`7"h
- In-Duct and All Weather Systems
- Supply Air Volume: max 4000 CFM
- Pressure Drop: 0.1” w.g.
- Size: 6`3"l x 4`4"w x 2`7"h
- In-Duct and All Weather Systems
