AirRay Grid and Strip Electrodes
FromCorTec GmbH
Our Grid and Strip electrodes are designed to provide an electrical interface to the central nervous system. They are the ideal solution for ECoG or interoperative recordings. All contacts are able to record and stimulate. CorTec’s Grid and Strip electrodes are made from very soft silicone using a high-precision laser manufacturing process. They offer an unprecedented combination of flexibility, softness, stretchability, thinness and density of contacts.
Most popular related searches

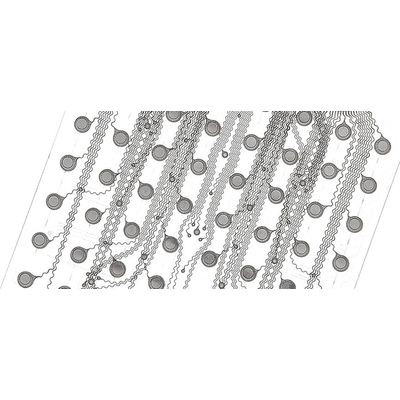

Micro 4 x 8 Square 45°
- 32 contacts
- micro-contacts | 1 mm Diameter
- 20×20 mm
- contact arrangement shifted by 45°
4 x 16 Finger
- 64 contacts
- 1 mm Diameter
- 60×40 mm
- equal contact spacing
- slit contours
- ideal to adapt to the convex shape of the brain
5 x 16 Finger
- 80 contacts
- 1 mm Diameter
- 60×32 mm
- equal contact spacing
- slit contours
- ideal to adapt to the convex shape of the brain
Micro 8 Hexagonal
- 8 contacts
- 0.3 mm Diameter
- 3.4×7 mm
- hexagonal contact arrangement
Micro 16 Hexagonal
- 16 contacts
- 0.3 mm Diameter
- 5.7×7.5 mm
- hexagonal contact arrangement
Micro 32 Hexagonal
- 32 contacts
- 0.3 mm Diameter
- 7×8.5 mm
- hexagonal contact arrangement
