Micrel Rythmic -Model Evolution Yellow -Ambulatory Pump for Pain Management
Rythmic™ Evolution Yellow is an ambulatory pump for Pain Management aiming to reduce the risk of medication errors in Epidural and Intrathecal routes.
Most popular related searches
ambulatory pump
pain management
infusion set
infusion monitoring
infusion system
patient data
infusion start
epidural
infusion flow
infusion continuous
Key features of the Rythmic™ Evolution Yellow portable pump:
- Clear colour identification of infusion route from the pump to the patient via yellow colour coded infusion set
- A higher pressure limit range
- Custom menu with or without Bolus / Dose Limit Loading dose to fit therapy protocols and avoid set up errors
- Easy review of patient history thanks to easy-to-read history menu on the pump and display of graphs
- Simplified set up menu for 3-step start procedure: Enter Rate, Volume to Infuse and Start infusion.
- Allows for "Preventive Maintenance" notices.
- Ability to print history and events on a portable printer or download on a PC
- Connectivity to our proprietary mobile GPRS device IP-Connect™ Pack that allows for the best infusion monitoring service available today through our web based MicrelCare Service system
Rythmic™ Evolution limits "unnecessary alarm" activity
The pump has been designed to reduce most of unnecessary potential alarms whilst preserving full safety:
- No air alarm thanks to the air in line eliminator incorporated in all sets
- Automatic restart after occlusion release
- Long battery autonomy (9 days at 2ml/h) to decrease the frequency of battery alarms and related changes
Rythmic™ Evolution offers "All in One" innovative, high safety, infusion sets
- Yellow striped tubing for colour idetification of Epidural space or Intrathecal infusion routes
- All sets include all pre-assembled components thus avoiding additional unsafe connections
- Soft drug bag convenient to fill and prime manually or via the pump
- Built-in anti free flow/ back check valve, air eliminator and extension line on all sets
Rythmic™ Evolution range offers real mobility to patients
- Small, ergonomic and compact for true and comfortable ambulatory therapies
- Drug bags for volumes up to 200 ml placed in dedicated space inside the pump
- Lightweight: 335 g with dry cell battery
- Outstanding battery autonomy
- Delivery modes: Continuous, Bolus only, Continuous + Bolus, Programmed Automatic Bolus (PAB)
- Accuracy: +/- 5 %
- Flow rate: 0.1 to 100 ml/h
- Programming units Concentration: ml/mg/µg: 0.1 to 99.9 mg/ml/0.1 to 999.9 µg/ml
- Volume to infuse: 1 to 9999 ml
- Bolus dose: 0 or from 0.1 to 60ml with 0.1ml increment
- Bolus flow rate: 100 ml/h, adjustable from 50 to 100 ml/h with 10 ml/h increment
- Lockout interval: 0 to 999 minutes
- Special functions:
- Protocol libraries (60 protocol per library)
- Lockable pump keyboard: Autopriming through the pump
- Dose limit / x hours and Bolus limit / x hours
- Loading dose
- Clinician bolus override
- Mandatory priming (enabled, warning only, disabled)
- Therapy monitoring
- Recording of patient pain scores with visual analogue scale (VAS)
- VAS available in the pump history, printable and computer downloadable
- "Ready to Connect" to the MicrelCare System for therapy monitoring through the web.
- KVO: 0.1 to 2.0 ml/h
- Automatic restart of infusion after occlusion release: Yes
- Safety features
- Air in line eliminating filter
- Lockable protective cover for drug container
- Code protected stop of infusion
- Free flow protection
- Programming within protocol limits
- Dedicated therapy front face for regional analgesia (PCEA/PCRA yellow color code)
- Occlusion alarm levels
- Low (0.8 +/- 0.4 = 0.4 - 1.2 bar)
- Middle (1.2 +/-0.4 = 0.8 - 1.6 bar)
- High (1.6 +/- 0.4 = 1.2 - 2.0 bar)
- Alarms & warnings
- Occlusion near end and end of infusion
- Keyboard continuously pressed
- Low and depleted battery
- Dose limit, bolus limit
- Open mechanism, preventive maintenance warnig
- Access code levels: 3
- Programming
- Protocol libraries programmed with "Rythmic™ Evolution Therapy Manager" computer software
- Direct programming on the pump possible with code
- History, infusion graph / printout and PC download
- Yes, including 6500 time stamped events event log
- Infusion graph, bolus graph/list, pain level/graph/list
- "Plug and play" print facility
- Battery life: 9 days at 2 ml/h
- Power supply: 100 to 240 V, 50-60 Hz (with optional adaptor KS5.01.615.4)

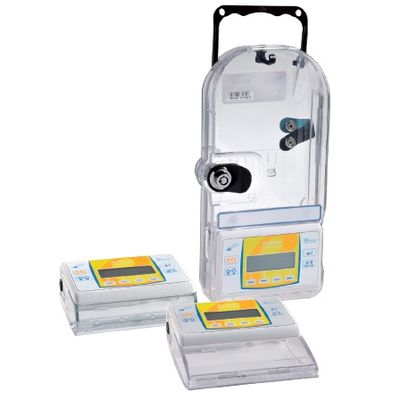

- Weight with battery
- 300g for Mini Rythmic™ Evolution
- 335g for Rythmic™ Evolution
- 740g for Rythmic™ Organizer 500 series
- Size
- 130mm x 75mm x 46mm for Mini Rythmic™ Evolution (including 100 ml bag)
- 130mm x 133mm x 46mm for Rythmic™ Evolution (including 200 ml bag)
- 157mm x 299mm x 82mm for Rythmic™ Organiser 500 series (including 500 ml standard bag)
