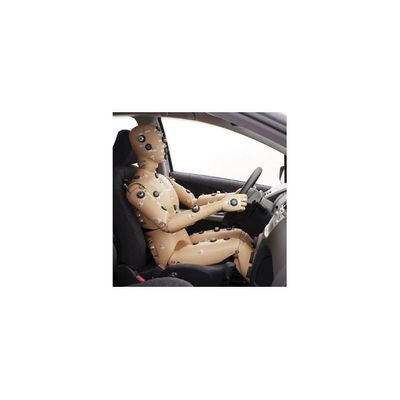

Kanomax - Amenity Manikin System

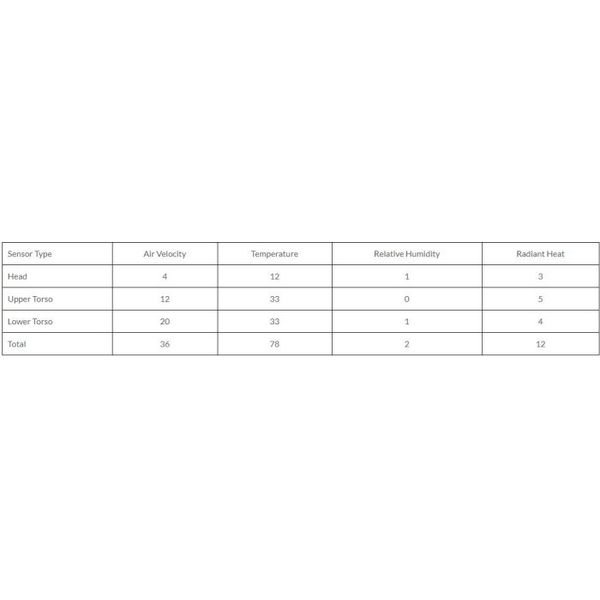

The Kanomax Amenity Manikin System is an optimal solution for precise interior cabin comfort evaluation. The system measures parameters, such as air velocity, temperature, humidity, and radiant heat, which all relate to human comfort levels. One mannequin may be equipped with more than 120 sensors, providing sophisticated measurements.
Most popular related searches
- Simultaneous measurements up to 4 manikins
- Wireless data communication
- Software for both real-time measurement and data retrieval
- Excel compatible data output as well as saved graphical data for review
- Automotive
- Aerospace
- Construction
Mannequin Specifications
- Height: approx. 170cm (5′ 7″)
- Weight: 40kg (90lbs, including data processor)
- Material: Plastic (FRP)
- Air Velocity
- Range: 0.1 to 5.0 m/s
- Accuracy:
- 0.1 to 2.0 m/s?
- 2 to 5 m/s
- +/- 0.05 m/s
- +/- 0.10 m/s
- Temperature
- Range: -33 to 100 C
- Accuracy: +/- 3 C
- Humidity
- Range: 3 to 95 %RH
- Accuracy:
- 3 to 30 %RH
- +/- 3 %RH
- 30 to 75 %RH
- +/- 2 %RH
- 75 to 95 %RH
- +/- 3%RH
- Radiant Heat
- Wavelength: 0.3 to 40 um
- Range: 0 to 1 kw/m2
- Accuracy: +/- 7 %
