Major - Model GPCS404 - Anaesthesia Machine

Description: Anaesthesia Machine Major J. Customized Production. Special Export Packaging. Superior Quality & Competitive Pricing. Convenient Delivery Schedule.

Most popular related searches

anesthesia accessories

breath clean

emergency safety

Construction: Trolley made of tubular rigid steel section electrostatically powder coated or stainless steel
Capacious drawer for keeping anaesthesia kit/accessories
Extended platform at rear for two 10 ltrs. (Water Cap.) Cylinders
Large roller bearings, antistatic castors for easy mobility and brakes
Top tray provided at eye level for monitoring equipments
Hook for breathing circuit
Wipe clean stainless steel top
Convenient mounting of circle absorber (Optional)
Unitised rotamaeter block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous back plate.
Oxygen flow meter calibrated from 100cc/mm to 10 ltrs/min & Nitrous oxide flow meter from200cc/mm to 12 ltrs/min down Stream receipt of oxygen (air 0 to 12 ltrs optional)
One gold man type vaporizer for halothene, provision to mount three vaporizers at a time
Non return cum blow off valve in circuit ensures that pressure does not build-up beyond 200cm. water column & minimises risk of back flow of gases 60 psl outlet for driving ventilator
Change over system open circuit or close circuit
Emergency Oxygen flush valve at table level to give 35-60 ltrs/min for emergencies
Cylinder yokes: Pin indexed yokes two each of oxygen & nitrous oxide
63 mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity
High efficiency regulators for reliability, two each for O2 & N2O
One Maggill’s or Brain circuit

Emergency oxygen flush
Alarm to provide audible indication of O2 supply pressure failure
Nitrous oxide shut off in the event of O2 failure

Major - Model GPCS404 - Anaesthesia Machine

Specifications

Safety Features

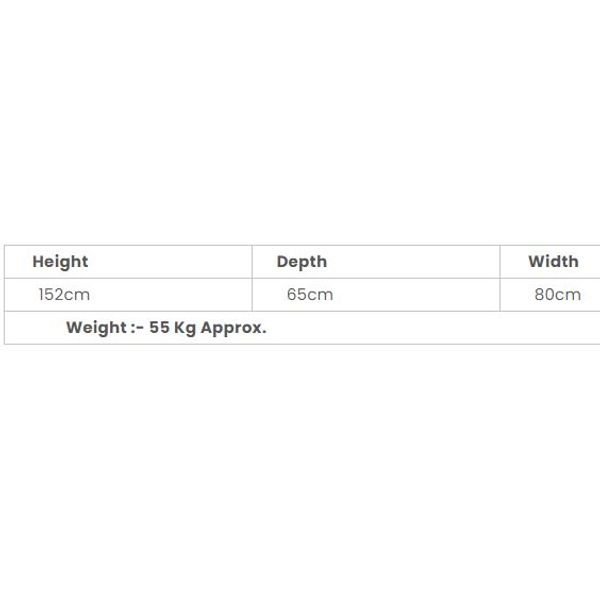

Dimensions
