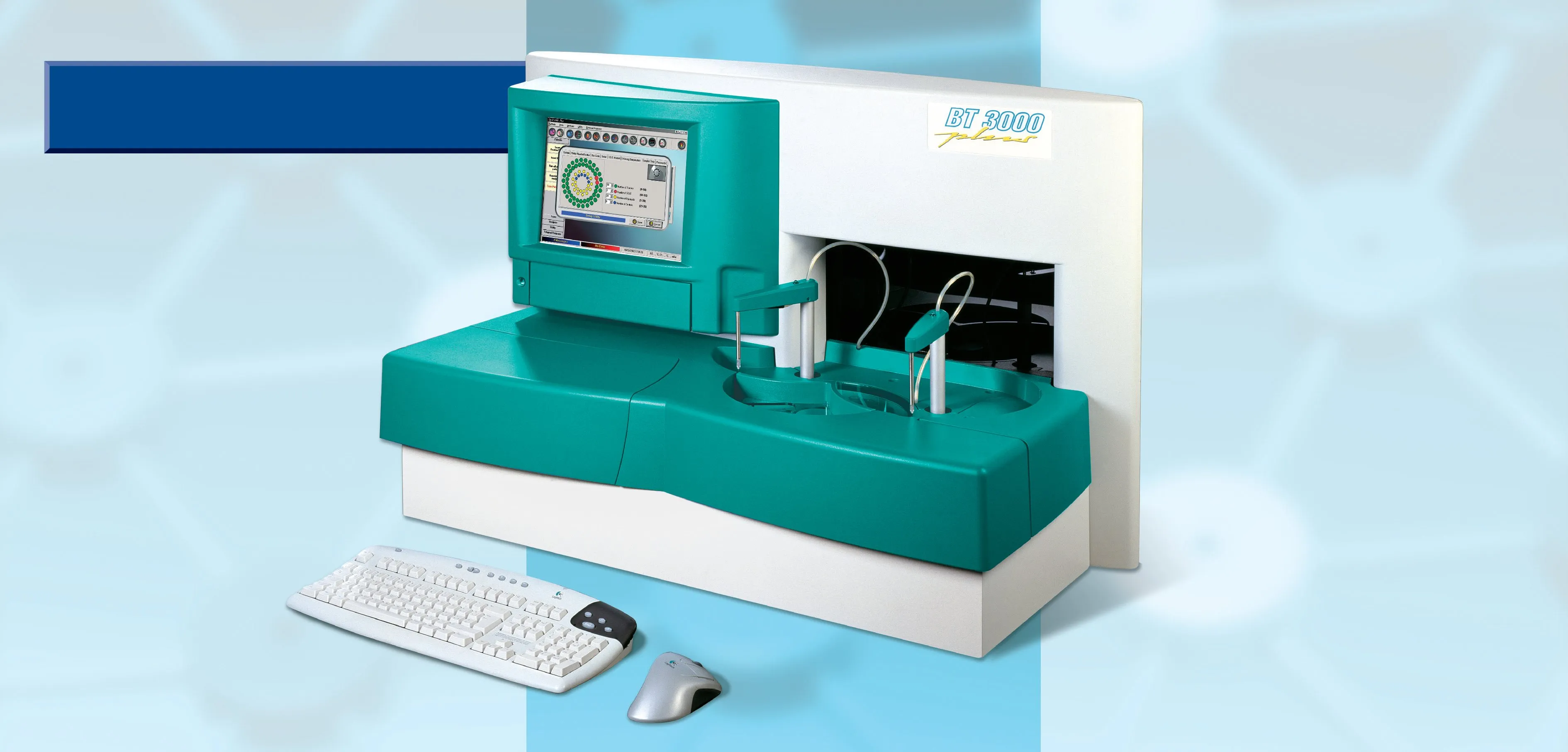

Biotecnica Instruments -Model BT 3000 plus -Analyser

The point of reference for the future in the modern laboratory of clinical analysis.The Know how thirty-year of the Biotecnica Instruments SpA matured in the sector, has allowed the realization of this new analyser perfect synthesis of technology, performances and design.The theme proposed to our planners has been that to realize a new tool, that in the raccoglierel`esperienza of the preceding series of analysers, it maintained the formulation of it bringing all the improvements and innovations that technology allows. List of some special characteristics and technical performances that it makes of this analyser an assembled of technology and reliability, been born by the experience of a society Leader in the world:

• 12 microcontroller of last generation that manage, coordinated by the central unity teninspectors of last generation that manage, coordinated by the central unity, ten different microsystems for a great speed of elaboration and availability of resources for the central unity.
• Connection among the processors with technical dual wire for a great protection of the circuits from the external troubles..
• New feeder with technology PFC (Power Factor Correction) to tall performances and energy saving..
• DVD multimedia capability
• WINDOWS 7 32 bit interface software

still more...

Throughput: Up to 300 Chem. Tests/hr + up to 190 ISE Tests/hr
ISE Module on board: Yes: Na, K, Cl, CO2
Number of reagents: 80 Total - (40 for  or 80ml + 40 for 10ml or 20ml)
Refrigerated Reagent Bay: Yes
Reaction volume: From 280 to 700 µl
Sample volume: From 1 to 100 µl
Reading cuvettes: 34 non-disposable optical glass
Sampling Arm: 2 for Serum and Reagents
Number of position: 78 Total - 52 Samples - 26 Standards and Control
Test Modes: Random Access, Batch, STAT
Test Directory: Up to 500
Temperature control: Peltier System OFF/30/32/37°C (±0,2°C)
Vacuum Pump: External
Photometer: Solid state 10 channel + Reference channel
Photometer Accuracy: ± 1% (0-2 O.D.), + 2,5% (2-3 O.D.)
Photometer Sensitivity: ± 0,001 Abs
Diluter: 2 - Long life ceramic 470 µl
Diluter Accuracy: ± 0,1% f.s.
Diluter Sensitivity: ± 1 µl
Bar Code: 2: Reagent and Serum
Internal Computer: CPU Atom 1.8 GHz
Peripheral Devices: DVD ROM, HD>40 Gb
Monitor: Color LCD 12"
Touch-screen: Yes: Glass Protected resistive kind
Keyboard: U.S.A. Standard
Mouse: Yes
Software: Windows® 7 32 bit
Process electronic: 12 Microcontrollers I² CBUS Protocol
Interface: RS232, Bidirectional + USB + LAN + VGA
Built in QC Program: Yes: 3 Levels known, 3 Levels Unknown
Maintenance: Software assisted
Power Supply: 100/240 Volt, 50-60Hz, 1000 Watts, PFC
Environmental temperature: 18 - 32°C (64.4-89.6°F)
Relative humidity: 10 - 85% (not condensing)
Dimension: Height - 27", Width - 40", Depth - 23"
Weight: 210 lb (95 Kg.)
