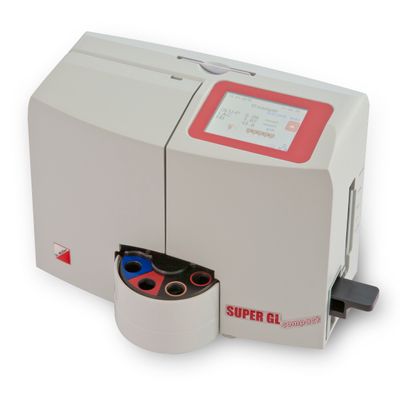

Dr. Muller - Model SUPER GL Compact - Analyser
The SUPER GL compact has the advantages of SUPER GL easy+ and SUPER GL ambulance in one device. With this analyser it is possible to measure glucose, lactate and hemoglobin simultaneous from one sample and the device also shows the glucose values plasma referenced. At it’s sample rotor are one position for calibration, one position for sample measuring and two positions for control material. Additional the device has a sample rack with six sample positions for patients samples - so you also could measure small series.
The software of the device also calculates the statistical evaluation of the control measuring according the actual valid German guideline of the German Medical Association.This statistical evaluation is easy to program and easy to use by the innovative touchscreen. The statistical evaluation of the controls will be shown at the display, but also could be printed or send to EDP.
A further news at this product generation is the entry of the barcode by a PS2-keyboard or a barcode reader - and so its much easier to connect the measured value to the patients data.
We realised the IFCC-recommendation for displaying the glucose values plasma referenced at this device.
Performance Data
Measuring Time
Single Measurement Glucose: ca. 30 seconds
Single Measurement Glucose / Lactate / Hemoglobin: ca. 45 seconds
Series Measurement Glucose: ca. 30 seconds - 120 samples/hour
Series Measurement Glucose / Lactate / Hemoglobin: ca. 45 seconds - 80 samples/hour
Measuring Range
Glucose: 0.5 mmol/l to 50 mmol/l or 9.01 mg/dl to 900.8 mg/dl
Lactate: 0.5 mmol/l to 30 mmol/l or 4.5 mg/dl to 270 mg/dl
Hemoglobin: 1.2 mmol/l to 20 mmol/l or 1.9 g/dl to 32 g/dl
Sample Volume
10 µl sample diluted with 500 µl hemolysate solution
Precision (18 samples) - Variation Coefficient Indication
Glucose (12 mmol/l or 216 mg/dl): < 1.5 %
Lactate (10 mmol/l or 90 mg/dl): < 1.5 %
Hemoglobin (7.6 mmol/l or 12 g/dl): < 1.5 %
Sensors
Operating Time Glucose Sensor: max. 6 months / max. 10.000 samples
Operating Time Glucose and Lactate Sensors: max. 3 months / max. 10.000 samples
Technical Specifications
Working Temperatur: + 15 °C bis + 35 °C
Supply Voltage: 12 V DC
Power Consumption: max. 45 W
Classification according MPG: In-vitro-Diagnosticum (guidline 98/79/EC)
Interfaces
Printer: serial, RS 232
EDP: serial, RS 232
Barcode Reader: external, PS/2
Dimensions / Weight
Width: 220 mm
Hight: 170 mm
Depth: 185 mm
Weight: 1.7 kg
