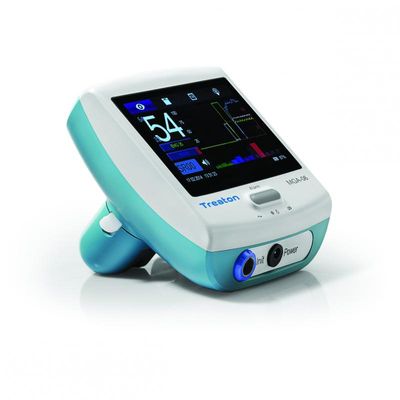

Model MGA-06 - Analyzes Patients EEG Device

FromTriton Electronic Systems Ltd.

SHARE

The device analyzes patient`s EEG in time and frequency domains and defines brain activity index (AI), that reflects patient`s depth of anesthesia and sedation level.

Most popular related searches

anesthesia sedation

sedation anesthesia

anesthesia time

intravenous anesthetic

electrocardiogram

AI - Brain activity index	Indicates patient`s depth of anesthesia and sedation level. Depth of anesthesia evaluation is based on analisys of electroencephalogram (EEG). Algorithm of EEG analisys keeps information about typical signs of influence of different groups of anesthetics - types of EEG suppression
SR - EEG signal suppresion rate	Reflects the suppression of EEG activity and determines level of the further deepening of anesthesia
SQI - EEG signal quality index	Indicates the influence of impedance of cable electrodes, artifacts, high-frequency noise, power mains disturbances and decreases linearly from 100% to 0%
EMG - Electromyographic component level	Electrical activity of facial muscles

Patient age groups	Adults, children over 10 years old
Display	5" color, touch screen
Measurement method	Data processing of one electroencephalogram lead
Power supply	Built-in battery 2 hours of operation 100–250 V, 50/60 Hz
Scheme of applying of electrodes	Derivation points F7-FZ F8-FZ (a frontotemporal part)
Displaying of registered parameters	Digital Graphic
Displaying of digital parameters	Brain activity index (AI) Signal suppression rate (SR) Signal quality index (SQI) Electromyographic component level (EMG) Impedance of electrodes (Z1-Z3)
Alarms	Visual and sound alarm system High AI Low AI Technical alarms: electrode is disconnected, HF noise, power line disturbances, multiple artifacts, low battery
Trends	24 hours of graphical trends
Mount	Universal mounting on a horizontal surface, in vertical and horizontal planes

Universality	Operates with inhalation and intravenous anesthetics
Low cost in operation	Kit from 3 typical ECG-electrodes is used for measurement
Simplicity and safety for patient	3 ECG-electrodes are placed on the fronto-temporal lobes of the patient
Efficiency	Using the device allows: reduce the consumption of anesthetics, as well reduce the awakening from anesthesia time by 35-50%; stably maintain the required depth of sedation (according to statistics, without AI-control more than 69% of patients have insufficient or excessive depth of sedation); mostly eliminate the risk of anesthesia awareness .
