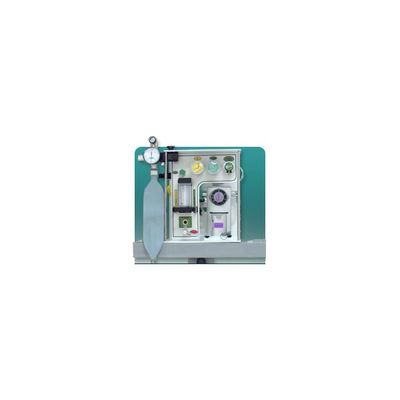

Magellan-2200 -Model 3 -Anesthesia Machine
The Magellan-2200, Model 3 device has no ventilator, meaning that each patient must be spontaneously breathing or be bagged by the provider. This machine was designed for the user whose requirement is for short procedures in which a ventilator is not necessary, as well as itinerant providers, mission groups and customers whose capital equipment budgets require a basic anesthetic gas delivery device, as it is among the least expensive FDA cleared anesthesia delivery devices available.
Model 3 may be configured to be MRI certified, and due to its small footprint and very light weight it may be very conveniently used in a variety of special procedure rooms within a hospital environmnet, as well as surgical centers. Pneumatically powered by either air or oxygen, this device is completely portable and as with all Oceanic anesthesia models, the single agent anesthetic vaporizer in your choice of available agent is included within the price, not added as a necessary option. The Model 3 deserves your serious consideration if your requirements are for a simple, inexpensive device.
| @30 cmH2O | -0- ml/min |
| @80 cmH2O | -0- ml/min |
| @20 cmH2O | 1.1 ml/cmH2O |
| @40 cmH2O | 1.3 ml/cmH2O |
| @1.0 L/sec gas flow | 4.11 cmH2O |
| @0.5 L/sec gas flow | 1.80 cmH2O |
| @3.0 l/min gas flow | 0.12 cmH2O |
| @30 l/min gas flow | 1.03 cmH2O |
| + 122 degrees F | |
| -15 degrees F | |
| (Allow unit to warm to normal operating room temperature for at least one hour) |
Dimensions: Height 14.5-inches Width 12-inches Depth 8-inches
Weight: Free Standing 29 lbs. fully equipped Shipping Weight 40 lbs.
Machine Materials: Aluminum, brass and plastic
Carrying Case Materials: Plastic, military grade
Operating Temperature Range: 35 degrees F to 95 degrees F
Recommended Gas Supply Sources:
O2 Main and Cylinders 45 psi to 55 psi (50 psi is optimal)
Air Main, Cylinders and/or 45 psi to 55 psi (50 psi is optimal)
Air Compressors
Flowmeter Fresh Gas Flow Calibrated and scaled 0-15 lpm > 30 lpm.
Oxygen Flush Valve Recessed, self-closing, push-button, color coded, and labeled, provides 45-55 lpm constant flow, while push-button is depressed.
CO2 Absorber King Systems KAB-1, pre-filled or refillable
CO2 Absorber Canister Capacity 400 grams soda lime
Directional Valves Built in the CO2 Absorber
CO2 Absorber Mounting Bracket Plastic, secured with knob to main frame of machine
Pressure Relief Valve Attached to Bag/Gauge/PRV Arm
Common Gas Outlet Quick-Connect, Size Indexed
Tubing Circuit King Systems F-360-61 or any standard anesthesia circle
Gas Pressure Hoses DISS and Thread indexed, female connectors at both ends
Gas Inlet Manifold DISS, Thread indexed male connectors with one way valves with separate filters and filter spacers
Gas Inlet Pressure Regulators
Main Supply Cylinder
DISS and Thread indexed for Oxygen and Air
Safety back-up Cylinder Pin-Indexed, Yoke-mounted for “D” and “E” cylinders
Oxygen and Air Supply Gauges 0-3000 psi range, color-coded and clearly labeled
Oxygen Supply Alarm Pneumatically actuated when supply pressure falls below 30 psi (mains)
Alarm Power Source 9-volt battery located in body of alarm container
Air and Oxygen Flowmeters Calibrated and scaled 0-10 lpm, color coded, O2 flowmeter has fluted knob for easy identification by touch
Oxygen Analyzer/Monitor Maxtec OM-25ME galvanic cell sensor, sensor-life expectancy of 2 years under normal conditions
Oxygen Analyzer Power Source 2 each AA batteries, life expectancy approx 3000 use-hours
Auxiliary O2 Flow Selector Scaled 0-10 lpm in set increments, used for pre/post anesthesia oxygen administration with nasal cannula mask
Vaporizer Penlon Sigma Delta series, bolt (cage) mounted
Patient Pressure Gauge Mounted on front side of Bag/PRV Scavenger Arm, + 60 cmH2O to -60 cmH2O
