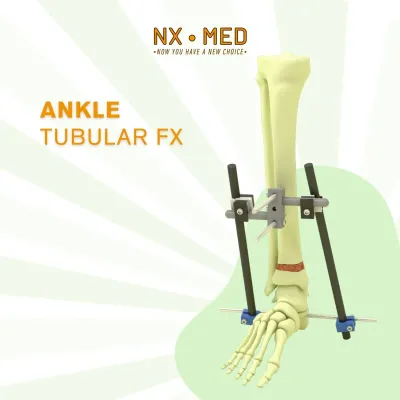

Nafx NX-MED - Ankle External Fixators
FromNafx Medical
They are widely used because they are ready-to-use, practical and robust. These products, also known as Orthofix Type fixators, are preferred by orthopedic surgeons all over the world. Monolateral external fixators are produced in 3 different sizes suitable for tibia, femur and humerus. Each of the products is presented as ready to be sterilized and ready to use, with 6 schanz screws and allen key.
Most popular related searches
Parts: Qty
- Monolateral Fixator (Humerus): 1
- Schanz Screw (4.0 mm x 150 mm): 6
- Allen Key: 1
- Monolateral Fixator (Femur): 1
- Schanz Screw (6.0 mm x 200 mm): 6
- Allen Key: 1
- Monolateral Fixator (Tibia): 1
- Schanz Screw (5.0 mm x 180 mm): 6
- Allen Key: 1
The body of all schanz screws, which is fixed by the fixator clamp, is designed as 6 mm.
The threaded part of the schanz screws are:
- For the femur, it is 6 mm in diameter and 200 mm in length.
- For the tibia, it is 5 mm in diameter and 180 mm in length.
- For the humerus, it is 4 mm in diameter and 150 mm in length.
