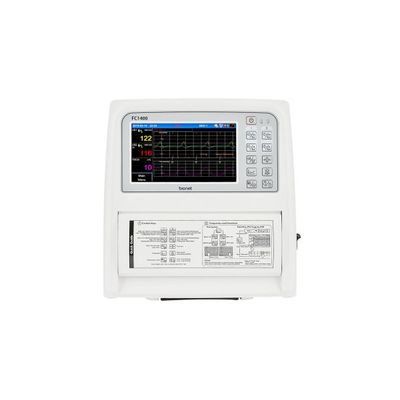

Bionet - Model FC1400 - Antepartum Fetal Monitor

• Product Specifications : Value
• Printing Speed : 1,2,3cm/min,( Real time)
• 30 cm/min (Trace, 2,3 cm/min setting)
• 20 cm/min (Trace, 1 cm/min setting)
• Fetal Heart Rate : Input Signal : Ultrasound pulsed doppler
• FHR detection method : Autocorrelation
• FHR range : 50~210
• FHR accuracy : 120~160bpm : ±1 bpm
• Except 120~160 : ±2 bpm
• Ultrasound Tranducer : Operating mode : PWD Mode
• Transducer Type : 9-crystal
• Ultrasound frequency : 1.0MHz
• Pulse Repetition Frequency : 3125Hz
• Spatial-Peak Temporal Average Intensity : <10mW/cm2
• Display : 7” Wide (800 X 480)
• User Interface : Short Key
• Printer Resolution : Method : Thermal Array Print
• Type: Z-folder
• "Print speed : 1,2,3cm/min,( Real time)
• 30 cm/min (Trace, 2,3 cm/min setting)
• 20 cm/min (Trace, 1 cm/min setting)"
• Paper feeding function
• Auto CTG Analysis : Average Baseline FHR
• Number of TOCO
• Number of Acceleration
• Number of Deceleration : Late, Early, Variable
• High/Low Episode
• Short term Variability
• Signal Loss
• * CTG Analysis results is printed out every 10 minutes
• Uterine Contraction : Input Source : External Transducer
• Reference Control : One touch switch/ Auto zeroing
• Measurement range : 0~99
• Line Power : DC Input: 18V, 2.8A/ Adaptor “USE THE ONLY BridgePower Corp BPM050S18F02”
• Battery type : Lithium ion
• Battery Capacity : Li-ion : 4 hours ( charging)
• 2 hours(discharging)
• Data Storage : Storage for 72 hours
• Environmental Operation :
• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Storage Temperature: - 10°C to 60°C (14°F to 140°F)
• Operating Humidity: 30% to 85% RH
• Storage Humidity: 20% to 95% RH
• Operating Attitude: 70(700) to 106Kpa(1060mbar)
• Storage Attitude: 50(500) to 106Kpa(1060mbar)
• Dimensions : 296(w)x.305.5(H)x97.5(D)(Approx. 2.9Kg)
• Default Alarm Settings : Alarm Parameter: ON
• Alarm Limit: 160, 120
• Alarm Level: Medium

7″ Touch screen with intuive functional keys to strealime worflow

• FC1400 has 7″ LCD touch screen with 10 smart keys to streamline workflow of NST/CTG with fast,accessible trend mode in no time.

Graphic and Text mode

• With easy recognition numeric data as well as wave display mode, care-givers can easily understand babies’ heart rates as well as UC movements.

Clinical & customizable note entry

• Features 15 clinical notes & customizable 85 notes with password-able function for any further clinical reference of patient data

FC Central (Fetal central monitoring connectivity)

• All Bionet fetal monitors have connectivity with FC Central monitoring system for data management for HIS as well as multiple remote viewer mode.

Integrated CTG/NST analysis

• All Bionet fetal monitors have integrated CTG and NST as it features with detailed final report review and print-out.

Convenient CTG file conversion to JPG

• User can convert CTG data into JPG to transfer to external USB memory

Auto mode for accurate data record

• Auto TOCO zeroing & Auto fetal movement modes ensure data accuracy

Enhanced patient data storage up to 72 hrs

• 72 hrs of trend capacity that is easily traceable with touch of a scree so that users can easily understand FHR and UC changes in no time

Convenient external connectivities

• USB barcode scanner for patient ID entry
• USB external memory for

FC700 has INOP alarm by IEC-60601-1-8
