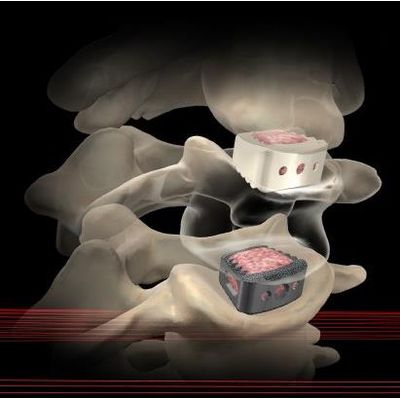

Alamo - Model C - Anterior Cervical Intervertebral Device

• Width x Length x Height lordotic options available :
• 0° Lordosis:
• a. 14 x 12 x 5 through 12mm (in 1mm increments)
• b. 17 x 14 x 5 through 12mm (in 1mm increments)
• c. 20 x 16 x 5 through 12mm (in 1mm increments)
• 7° Lordosis:
• a. 14 x 12 x 5 through 12mm (in 1mm increments)
• b. 17 x 14 x 5 through 12mm (in 1mm increments)
• c. 20 x 16 x 5 through 12mm (in 1mm increments)
• Teeth on superior and inferior surfaces of implant are designed to provide secure engagement and to prevent back out and migration.
• Biocompatible radiolucent polymer allows clear assessment of bony fusion
• Large graft area allows for optimal bone graft placement

The Alamo® C is indicated for anterior cervical interbody fusion procedures in skeletally mature patients with degenerative disc disease (DDD) of the cervical spine with accompanying radicular symptoms at one level from C2-T1.

DDD is defined as discogenic pain with the degeneration of the disc confirmed by history and radiographic studies.

These patients should have had six weeks of non-operative treatment prior to treatment with an intervertebral cage.

The device system must be used with supplemental fixation and autograft to facilitate fusion and is to be implanted via an open, anterior approach.
