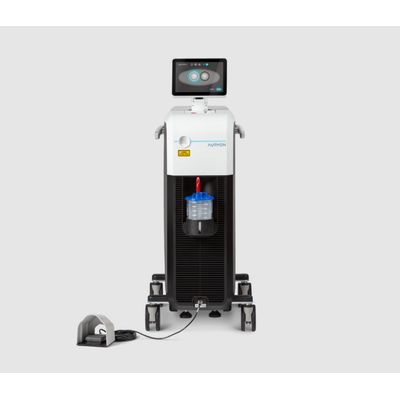

Auryon System
Technology that changes everything. Engineered with your practice and your patients in mind, the Auryon System is designed with industry-leading technology and features that allow you to treat any lesion you encounter, all with a single device built to streamline how you handle PAD.1-3.
Weight
650 lb
Length
49 in
Height
41.9 in
Width
24 in
Wavelength
308 nm class IV laser system
Power type
208-230 VAC single phase power US wall outlet receptacle NEMA L6-30R, Hubble Part # HBL2620, 250BAC, 30A wall mount twist lock7
Purpose-built catheters are designed to treat both above and below the knee, including the ankle.
femoral artery
2.35-mm catheter
- Reference vessel diameter: ≥3.6 mm2
- Built-in aspiration capability
- Off-centering mechanism
- Cleared for ISR
- French size 7 Fr
tibioperoneal trunk
2.0-mm catheter
- Reference vessel diameter: ≥3.0 mm2
- Built-in aspiration capability
- Cleared for ISR
- French size 6 Fr
1.5-mm catheter
- Below the knee
- Reference vessel diameter: ≥2.25 mm2
- French size 5 Fr
0.9-mm catheter
- Reference vessel diameter: ≥1.4 mm2
- French size 4 Fr
With the Auryon System, you get to harness the next generation of peripheral atherectomy technology.
ADAPTABLE
Treats all levels of calcification1-3
- Indicated for in-stent restenosis*
- Treats infrainguinal lesions both above and below the knee (including below the ankle)
- Built-in off-centering mechanism for eccentric lesions in largest catheter
*Only the 2.0- and 2.35-mm catheters are indicated for ISR.
PRECISE
Protective of the vessel wall3-5
- Performs targeted biological reactions to address risk of perforations
- Nonreactive to contrast media for simultaneous ablation and observation of fluoroscopy image
- Includes built-in aspiration to address risk of embolization†
†Built-in aspiration available only with the 2.0- and 2.35-mm catheters.
EFFICIENT
Designed for your lab1-3,6
- Designed to be portable, uses a 110V outlet, has a touch screen, and emits low acoustic noise
- Has the potential to debulk in fewer passages
- Small footprint, easy installation and storage
