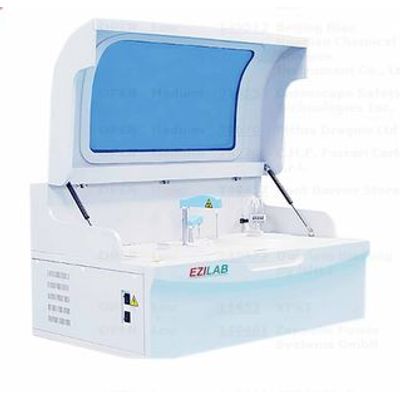

EziLab -Model EZL-CA102 -Auto Chemistry Analyzer
Auto Chemistry Analyzer EZL-CA102 is a bench top, fully automated chemistry analyzer with a throughput of 200 tests per hour. This is an ideal chemistry analyzer for low to mid volume hospitals and laboratories with an increased-on board testing, reduced sample volume and easy operation for laboratories around the world. The user-friendly interface provides a long-life platform for analytical excellence. This system includes reagents, controls and calibrators along with standardized test menus, assay protocols, instrument processes and reference ranges that reduce operator variation and provide consistent quality results.
- Throughput: 200 tests/hour
- Sample Volume: 2-70 µl
- Reagent Volume: 20-350 µl
- Sample Positions: 49 sample positions
- Reagent Positions: 56 reagent positions
- Wavelength: 340,405,450,510,546,578,630,700nm
- Absorbance: 0~3.0 Abs
- Humidity: 30-80%
- Washing: Automatic cuvettes washing
- Probe Washing: Automatic washing interior and exterior
- Reagent Cooling: Refrigerated tray with independent switch
- Cuvettes: 120 reusable cuvettes, optical length 6mm
- Mixed Probe: Independent stirring
- Stat Function: Yes
- Light Source: 12V/30W halogen lamp
- Spectrophotometry: Post-spectral spectrophotometry
- Calibration: Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5
- Quality Control: Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D)
- Software: Windows 7/8/10 LIS system available
- LIS System: Bi-direction, support HL7 protocol
- Interface: LAN port access
- Printer: External, multiple reporting mode available
- Temperature: 10 - 30°C
- Temperature Control: 37±0.1°C, real time monitor
- Water Consumption: Deionized water: 5 L/H
- Power Supply: AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
- External Dimension (W×D×H): 950x612x510 mm
- Package Dimension (W×D×H): 1118x728x1151 mm
- Net Weight: 75 kg
- Gross Weight: 130 kg
- Intelligent software
- High quality components
- Uninterrupted workflow
- Inventory management
- Cost effective operation
- Crash and collision detection
- Robust testing capabilities
- Efficient reagent and consumable use
- Simplify operations with user friendly graphical user interface design and touch-screen monitor
- Refrigerated tray with independent switch
This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
