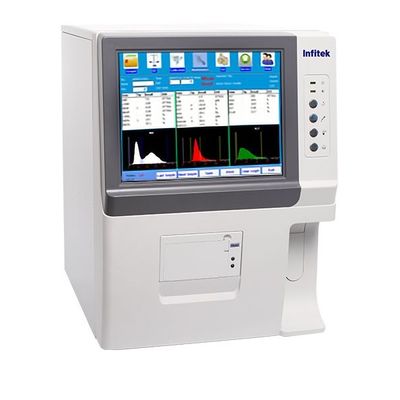

Infitek -Model HEMA-D6130 -Auto Hematology Analyzer, 3 Parts

1. 20 parameters+ 3 histograms
2. 10.4 inches large color LCD displays (Standard non-touch screen, Optional touch screen)
3. Up to 60 tests per hour;
4. High reliability & Safety, The most advanced technology and structure
5. Adopting the most advanced binuclear embedded digital circuit system makes the analytical ability great and stable
6. Separate test units of WBC and RBC makes the test results more accurate and less cross- contamination
7. Adopting CPLD technology in data processing, free from the interference of electromagnetic signals
8. Easy operation: Easy operating interface; Dual test units, fast and convenient; Module design, fast maintenance
9. Economical and Durable

• Long life of the machine, all accessories with high performance
• Classic design of highly reliable fluid pipe structure
• Long-term stability, accurate and reliable clinical test results is the core of HEMA-D6130

• Principle: Electrical impedance for counting and SFT method for hemoglobin
• Test parameters: WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT
• Sample quantity: 9μL venous blood, 20μL pre-dilution blood
• Sample Pre-dilution: Internal diluter, add 1ml dilutent automatically by the needle; no need to add diluent manually, to avoid error and make the operation more convenient and standard.
• Working model: Dual-channel testing
• Aperture: WBC: 80μm  RBC/PLT: 50μm
• Throughput: Automatic sampling, 60 samples per hour.
• Results storage: Storage of 10,000 patients’ results (including histogram).It is more convenient to manage and review historical data.
• Reference value setting: For general use, male, female, children, newborns.
• Calibration: Manual and automatic calibration
• QC: Comprehensive QC program, forming and printing the histogram automatically.
• Performance index:
  • precision (CV) linear range
  • WBC≤4.0% 1.0×109/L~99.9×109/L
  • RBC≤2.0% 0.30×1012/L~7.00×1012/L
  • HGB≤2.0% 20~240g/l
  • PLT≤8.0% 20~999×109/L
  • MCV≤3.0%
• Test reagent:
  • Diluent: 20L
  • Lyse: 500ml
  • Cleanser: 1L/5L
• Maintenance reagent: Concentrated Cleanser: 50ml
• Boot check: Self check for hardware, alarm for disorder
• Clog-removal: Real time monitor, high ignition,soak, flush and back flush
• Classification: Floating landmark technique
• Mainframe control: ARM Intelligent micro-processing technology and high-   performance document-management, display and print-processing.
• Data analysis: Intelligent pulse formulation techniques
• Structural features: Separate module design
• Display: 10.4″ large color LCD displays all parameters and histograms simultaneously
• Language: Chinese, English
• Print: Internal thermal printer or USB port universal printer (matching)
• Output: 3USB port, 1parallel printer port, 2 RS232 port
• Ambient Conditions:
  • Temperature: 15-30℃; Humidity: ≤80%;Atmospheric pressure: 70Kpa-106Kpa
  • Power supply: AC220V±22V, 50Hz±1Hz
• Temperature: 15-30℃； Humidity
• Power supply: AC220V±22V, 50Hz±1Hz
• Dimensions: 325 x 370 x 545 mm
• Weight: 15 kg
