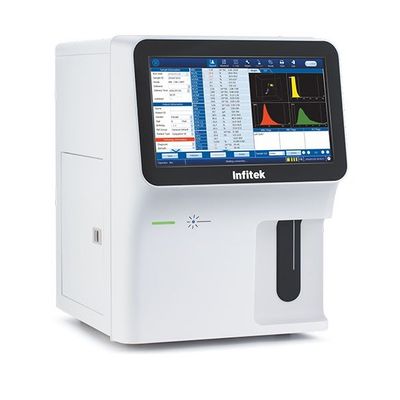

Infitek - Model HEMA-B6051Mini - Auto Hematology Analyzer, 5 Parts

• Premium large touch screen
  14 inch touch screen with high resolution and sensitivity，can be operated by wearing gloves.
• SMART-FLOW fluidic patent technology
  The creative SMART-FLOW fluidic technology is a simple and efficient system，which makes AC 610with good reliability and free of maintenance.
• Accurate measurement for low value PLT
  Advanced Sweep-Flow technology guarantees low PLT samples counted precisely.
• Low volume sample consumption
  CBC+DIFF mode ： s20ul， CBC mode ：s10ul， Ideal choice for pediatrics and geriatrics.
• Low running cost
  Only three reagents needed for the test， low reagent consumption for single test.
• Easy to use
  ONE touch to start the test， ONE click to remove error， ONE screen for most of the dally operation.
  Intelligent turn off power switch.

Model: HEMA-B6051Mini

• Throughput: 60 tests/hour
• Parameters:
  • 25 Reportable parameters:
  • WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD,RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#
  • 1 3D Scattergram
  • 3 Histograms(WBC/BASO, RBC, PLT)
• 4 Research parameter: ALY%, ALY#, LIC%, LIC#
• Test Mode:
  • CBC mode, CBC+DIFF mode
  • Venous whole blood,Capillary whole blood and Prediluted
• Sample Volume:
  • CBC+DIFF mode：≤20ul
  • CBC mode：≤10ul
• Reagent: Diluent, LH Lyse, LD Lyse, Probe Cleanser.
• Consumables:
  • Part Diluent: 20L
  • Part LD Lyse: 500ml
  • Part LH Lyse: 500ml
  • Probe Cleanser: 50ml
• Data Memory: Up to 100,000 results(including histogram, scarttergram, patient information)
• Display: 14 inch touch screen, resolution 1366*768
• Language: Chinese, English
• Interface: 1 LAN port, 4 USB ports
• Communication: Support LIS connection, HL7 protocol, Internal RFID reader.
• Printout:
  • Support various external USB printers, printout
  • formats user definable
• Dimensions(L* W*H): 480*375*517(mm)
• Weight: 36kg
• Power Requirement: a.c.100-240V,50/60Hz
• Working Environment: Temperature: 10-30°C, Humidity: 20% – 85%
• Air pressure: 70~106kPa, Working latitude: <3500m.
• 1 roller mixer and 1 kb online UPS is required along with all parts.
• Certification: CE
• Warranty: 1 year
